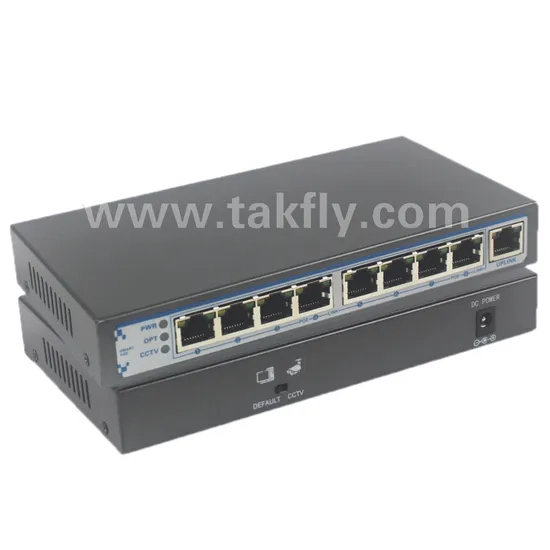

Marvell Chip 10/100/1000m 8 Port Poe Switch with 1 Uplink SFP Port

Product Description

Marvell Chip 10/100/1000m 8 Port Poe Switch with 1 uplink sfp port
1.Overviews
DF-1.25G-8P-1E is a 9-Port Gigabit PoE Switch with 8 PoE Ports, 1 Gigabit RJ45 Uplink port, port 1 to port 8 supports PoE IEEE 802.3at international standard, each port power is 30W. Total power is 120W.
This POE network switch can meet customer's general demands. POE network switch with POE function, designed for high-definition network camera's internet access. It provides 8 1000Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
2.Features
1.9-Port Gigabit PoE Switch with 8 PoE Ports, 1 RJ45 uplink Ports;
2.Supply power to wireless access points AP and network IP surveillance cameras;
3.Port 1 to Port 8 supports IEEE802.3at power (each port maximum power is 30W);
4.8x 10/100/1000 Mbps ports + 1RJ45 gigabit ethernet uplink ports;
5.Compatible with IEEE 802.3 10i and IEEE 802.3u standard;
6.The packet forwarding speed is 1.488Mbps of one wire-speed port;
7.Port features with auto-flip(Auto MDI/MDIX);
8.Network port comes with lighting-proof ;
9.All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed;
10.Automatic adjustment, plug and play, no need software and protocol conversion;
3.Highlights
1.No Frame Loss IP Data Transmission;
2.PoE+ Standard 250m in One-key CCTV Mode;
3.10 KB Jumbo frames support;
4.Few video time delay;
5.4KV Lightning Protection;
4.Technical Specifications

Item		Description
Model		DF-1.25G-8P-1E
Power Supply	Power Supply Mode	Mains on load
	Voltage Range	AC 100~240V
	Power Consumption	The device <5W, POE power supply <120W
Network Port Parameter	Network Ports	1~8 Ports: 10/100/1000Mbps Ethernet port, adaptive control UPLINK Ethernet port: 10/100/1000Mbps Ethernet port
	Transmission Distance	1~8 Ethernet Port:0~100m Mandatory 10 Mbps reach up to 250m 1 Ethernet Uplink Port:0~100m
	Transmission Media	1~8 Ethernet Port:Cat5e/6 standard UTP cable, 1 Ethernet Uplink Port:Cat5e/6 standard UTP cable
	POE Agreement	IEEE802.3 af/at standards
	PoE Power Supply Mode	End-span method
	PoE Power Supply Wattage	Each port≤30W,Whole device<120W
Network Switch Specification	Network Standard	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
	Swap Mode	Store-and- forward
	Switch Capacity	20Gbps
	MAC Address List	8K
Status Indicators	Power Indicator Light	One power light (green)
	Optical Fiber Port Indicator	One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data
	FE Uplink Port	LED (Green): On, port is link on; Off, port is link down;
	PoE Indicator	1~8 PoE indicator light(yellow)
	PoE Network Port LED	1~8 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
Switch	Switch 1(Vlan)	ON: Vlan open, 1 to 8 POE ports only can communicate with uplink port; OFF: Vlan close, normal status
	Switch 2(CCTV Mode)	ON: Vlan open, 1 to 8 POE ports only can communicate with uplink port, power and data can reach 250 meters; OFF: Vlan close, normal status
Protection Level	Surge Immunity	Level 3, executive standard:IEC61000-4-5
	Electrostatic Protection	1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2
Operating Environment	Working Temperature	-10ºC~55ºC
	Storage Temperature	-40ºC-85ºC
	Humidity(non-congeal)	0~95%
Mechanical Attributes	Dimensions (L*W*H)	188.5mmx102.5mmx28.25mm
	Color	Black
	Weight	1kg
Reliability	Mean time between failures (MTBF)	>50000h
Adapter type	Britain, American and European standard for your choose

Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6 cable for longest distance needed.
In addition, sincerely hope the following info will be helpful for you to understand our POE switch. 1.The chips we always use for POE switch are Broadcom and Marvell; 2.In the backside of our POE switch, there is a switch(named default and CCTV switch) can adjust the transmitter distance between POE IP camera and POE switch, pls kindly note the max transmitter distance we can reach is 250m;
3.All our POE switchws are intelligent, therefore it can supply enough worked power for all equipments that POE switch connects with according to the equipments' need. So the customers do not need to worry the equipments will burnout when POE switches supply big power much more than what they need, or the equipments can not work well if POE switches do not supply enough power to them; 4.All our POE switchws are compatible with IEEE802.3 af/at standards;
5.V-lan
5.1 Introduction
When V-lan function is opened, the LAN port can't make data conversion but can only communicate via uplink port. The V-LAN workstation is built separately between every network port and UP-LINK port.
In the same V-lan workstation, no matter which actual PoE switch being connected, the signal transmission are separately isolated from each other which seems they are on the different switches. The broadcast in the same V-lan can only be received by the members but can't be transmitted into other V-lan, which can greatly control unnecessary broadcast storm. What's more, different V-lan can't even communicate with each other when there is no routing, which increases the safe degree among different department in the enterprise.
5.2 Configuration
Toggle the V-lan button on the back of the switch to ON state, V-lan indicator lights, then press the reset button to restart the switch, in this way V-lan functions.
Note:
Please press reset button or repower the device when turn on V-lan, only in this way the switch can enter corresponding mode.
6.InstallationPacking List
Before installation, please check the following equipment and accessories, if there are any missing, please contact with your supplier.
1) 1 set of DF-1.25G-8P-1E;
2) 1 AC cable;
3) 1 user manual;

7.Please install as below steps
1.Before installation, please turn off the power of all signal sources and the monitor in case of the damage to transmission device;
2.Using network cables to connect with Ethernet ports of IP cameras and POE ports of PSE-2 series unmanaged POE switch;
3.Using UP-LINK port to connect NVR or computer etc;
4.Device Check weather installation is correct and the device undamaged;
5.Before power on PSE-2 series unmanaged POE switch, make sure that all connections are reliable;
6.Confirm all network devices are powered and can work normally;
8.Troubleshooting
When the device encountered with troubles, it can be solved by the methods below:
1) Make sure the device is installed correctly referring to the requirements;
2) Make sure RJ45 cable is good contacted without open circuit; the cable design complies with EIA/TIA568A or 568B international standards;
3) Each PoE port can provides max 30W to switch and the total power is less than the maximum power provided by the device. So please don't connect with the PoE device which is more than 30W;
4) Press reset button to check if the device can work properly;
5) Replace the trouble device with a normal working device to check if the device is damaged;
6) If all the above methods still don't work, please contact with manufacturer directly;
9.Making methods of RJ45 connector
1.Required tools: wire crimpers, network cable tester;
2.The wire sequence of RJ45l connector must complies with international standard of EIA/TIA 568A or EIA/TIA 568B;
3.Strip about 2cm's of insulating jacket to let 4 pairs UTP can be seen;
4.Separate 4 pairs UTP cable, and try to straighten each pair;
5.Arrange 8 cables with correct line sequence of EIA/TIA 568A or EIA/TIA 568B;
6.Cut thread residue and leave 1.5cm wire which exposed outside the insulating layer, and ensure 8 wires are straight and neat;
7.Put 8 wires in RJ 45 connector, then press with wire crimpers;
8.Repeat above five steps , make the other side of UTP cable; Then using the cable tester to test whether the cat5e/6 works normally;
