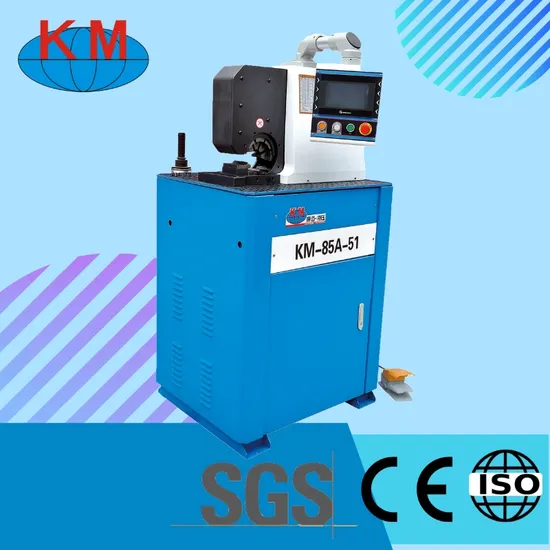

Side Feed Crimmping Machines for Hydraulic Hose

Product Description

* TECHNICAL DATA OF HOSE CRIMPING MACHINE*

Type	KM-85A-51
Crimping range	6 mm-87 mm
Hose size	2 inch
Standard voltage	380V or customized
Motor power	3 kW
Opening without dies	80 mm
Opening	20 mm
Speed	140 times/hour
Dimensions (mm)	810*665*1600
Weight with out oil	185 kg
Oil	60 L
Number of die stets	10
Noise level	75 dB
Back limit switch	Optional
Web camera	Optional

* Optional Voltage: 220V/440V
DIE SET OF HOSE CRIMPING MACHINE

Die No.	Crimp Range(mm)	D(mm)	L(mm)
15	15-25	15	65
18	18-28	18	65
20	20-30	20	65
23	23-33	23	65
26	26-36	26	65
29	29-39	29	65
37	37-47	37	65
46	46-56	46	78
51	51-61	51	78
63	63-73	63	78
Die can be customized according to your needs.

Advantages
* Side feeding hose, suitable for large flange and elbow.
* Suitable for quick change tool.
* Numerical control panel and touch screen panel available.
* QUICK CHANGE TOOL OF HOSE CRIMPING MACHINE*
The quick change tool allows the whole die set to be changed in one easy operation. The pins on the tool engage the holes in the dies. As the crimping head closes/opens the dies are secured to/released from the master dies. In this way the dies are kept in complete sets at all time and always used in the same order.
People from all works of life chose our hose crimping machine.
Our factory is located in Wangzhuang village, Shangcheng Town,Cheng'an County, Handan City,Hebei Province, China. Here the birds are singing and the flowers are fragrant.
We are warmly welcome friends from all over the world to visit our company.
Our company uses a variety of high-precision processing equipment, and every year will update the equipment.
Strict management, orderly arrangement and meticulous work spirit.
We arrend many exhibitions every year.The show attracts visitors from all over the world. We got a lot of consultation from the show.
Our company has passed ISO9001, SGS and CE certification.
Well, so many suppliers, why you should choose us?
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.Kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.1/4
2.The fitting and hoses crimped by kangmai machine never leakage the oil and never broken.The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC.The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting.Casting is cheap but has small hole on machine head.The piston will divide from casting machine head.
3.Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard.Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on.Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment.Everything is ok, the inspector signed and machine allow to go out the facotry.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
