Factory Automatic Fruit Juice Belt Press Extraction Sterilization Filling Machine Turnkey Complete Juice Drinks Processing Plant Production Line

Product Description

Juice production line
A. Specifications
1. Juice production line, apple,orange,mongo,pineapple,guava,bissap,grape,banana,olive,coconut,lychee,kiwi,banana, tropical fruits processing
2. All production capacity
3. Factory and hotel are suitable
B. Main Description
1. Fruit juice plant
2. CE GAP ISO approved
3. From water treatment to package
4. PLC control
5. High efficiency
6. 60- 1500 tons / day
C. Flow chart
Raw material Washing Sorting Crusher Squeeze Extractor Filtration Sterilizer Filling
D. Main technical parameter

1 The processing capacity is varied from 60 tons/day to 1500 tons/day.
2 The line Can deal with similar characteristic of fruits.
3 Using the high efficient of destoner to improve the mango output percentage effectively

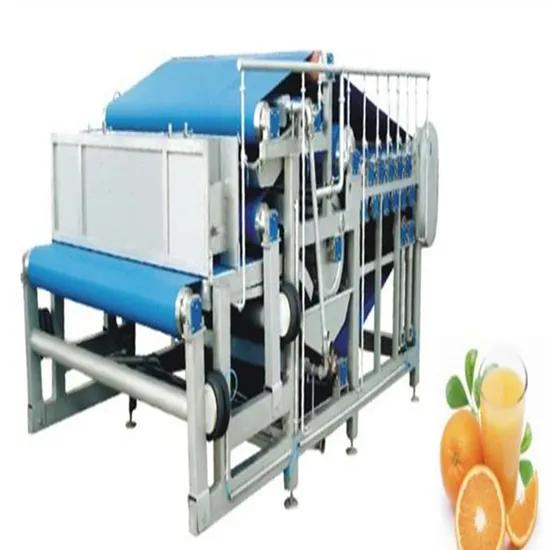

4 Using efficient belt juice extractor to improve the juice efficiency and the output percentage.
5 The production process fully automatic PLC control to save labor and Facilitate production management
6 Low-temperature vacuum evaporation ,Maximize reserve the flavor substances and nutrients also save energy.
7 Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products
8 Automatic CIP cleaning ,ensure the entire line equipment of food hygiene and safety requirements
E. Other models
Raw material:Peach,apricot,plum and other similar flesh fruits with hard seed
End product:Nature Juice, juice Concentrate, transparent juice, cloudy juice, canned fruits
Production capacity:20T/D-2000T/D
Output percentage: ≥90%
Solid content 7~12Brix
Packing type for end product:Aseptic Bag/glass Bottle/PET Bottle /gable Top Box/aseptic carton packing
Raw materialFresh Mango / pineapple
End product:Transparent juice and cloudy juice, concentrated juice and nfc
Processing capacity:60- 1500 tons / day
Output percentage:50-75%
Solid content in NFC:10-20Brix
Solid content in concentrated juice:60~72Brix
End package:Aseptic bag/gable top box/tetra pak/PET bottle

capacity

customized

1. Those lines are applicable for all kinds of hard seed fruits with pulp, such as peach, apricot, plum etc.
2. Flexible configuration to make this line, according to different requirements of the end products, some exact equipments with different functions are flexible chosen, for example: enzymolysis, evaporation etc.
3. According to different investment and product structure prefered, client can require average, middle level or high level processing equipments.
4. End product with pure flavor, bright colour, and high juice output percentage;
5. Whole line with features as high level automatically, low labour intensity, easy operation, safe function and low operation cost.
6. Whole line adopt sanitary design, can clean thoroughly, with high level sanitation.
J. Advantages of us
Our engineer: free direct the installation and operation of the equipments and train operators for customer.
Our machine: safe and reliable, efficient and energy saving, easy operating.
Our delivery: in time with English operating instruction program.
Our after-sale service: timely, professionally
