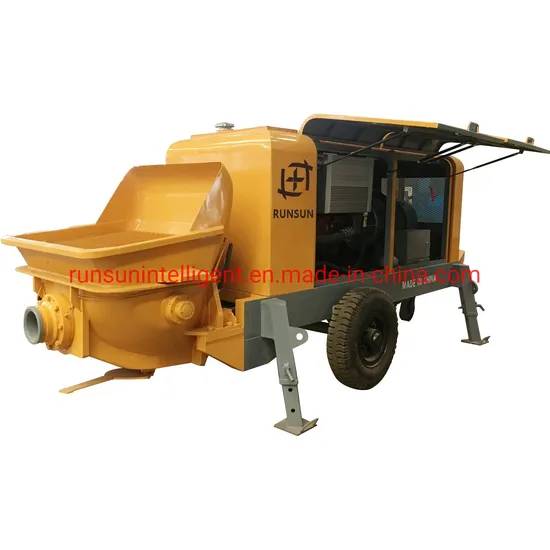

Hbt60 Trailer Mounted Beton Concrete Pumping Machine
Basic Info.
Model NO.
HBT60, HBT60R
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Power Type
Electric Motor, 90kw
Theoretical Concrete Output
45/60 M³/H
Concrete Outlet Pressure
7/13 MPa
Concrete Slump
120-230 mm
Max. Aggregate Size
Pebble≤40 mm, Gravel≤30 mm
Distribution Valve
S Tube Valve
Delivery Steel Pipe Diameter
125mm or 150mm
Speed
1480 R/Min
Concrete Cylinder Diameter * Stroke
D200*1650 mm
Oil Tank Capacity
500 L
Hopper Capacity
0.8 M³
Maximum Conveying Distance
120/500 M
Pipe Cleaning Mode
High Pressure Water Washing
High-Low Pressure Switch
Yes
Overall Dimension
5000×2000×2200 mm
Transport Package
Nude Package and Packaged in Container
Specification
HBT60, HBT60R
Trademark
RUNSUN
Origin
Hebei
HS Code
8413400000
Production Capacity
150 Sets/Month
Product Description
Technical Parameters| Model | HBT60 | HBT60R |
| Max Theoretical Concrete Output (Low/High pressure) (m³/h) | 45/60 | 45/60 |
| Max Concrete Pumping Pressure (Low/High pressure) (Mpa) | 7/13 | 7/13 |
| Concrete Slump | 120-230 | 120-230 |
| Aggregate Size (mm) | gravel≤40, pebble≤50 | |
| Power (KW) | Electric motor 90 | Diesel Engine 129 |
| Speed (r/min) | 1480 | 2300 |
| Conveying Cylinder Diameter (mm) | Ø 100/1000 | Ø 100/1200 |
| Concrete Cylinder Diameter (mm) | Ø 200/1650 | Ø 200/1650 |
| High-Low Pressure Switch | √ | |
| Hydraulic Oil Tank Capacity (L) | 500 | 500 |
| Hopper Capacity (m³) | 0.8 | 0.8 |
| Fuel Tank Capacity (L) | 180 | |
| Filling Height (mm) | 1400 | 1400 |
| Maximum Conveying Distance (vertical Height/Horizontal Distance) (m) | 120/600 | 120/600 |
| Pipe Cleaning Mode | High Pressure Water Washing | |
| Overall Dimension (mm) | 6000×2100×2260 | 6000×2100×2260 |
| Total Weight (kg) | 5800 | 6000 |
Main Configuration:
HBT60 CONCRETE PUMP (Electric Motor)
| Item | Brand or Manufacturer | Place of Origin |
| Electric Motor, 90KW | Jiangsu lideer | China |
| Main Oil Pump, K3V112*2 | KAWASAKI | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic hose | Manuli | Italy |
| Main Valve Group | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT60R CONCRETE PUMP (Diesel Engine)
| Item | Brand or Manufacturer | Place of Origin |
| Diesel Engine, 129KW | Weichai & DEUTZ | China |
| Main Oil Pump, K3V112*2 | KAWASAKI | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic Hose | Manuli | Italy |
| Main Hydraulic Valve | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Distribution Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT60 Trailer Mounted Beton Concrete Pumping Machine
Runsun Intelligent Technology Co., Ltd is a specialized manufacturer of various mortar and concrete machines. such as mortar mixers, concrete mixers, mortar grout pumps, mortar spraying machines, concrete pumps, fine stone shotcrete pumps, concrete mixer pumps, and so on. We have more than 30 years of experience in designing and manufacturing mortar and concrete machines. Our machine exported more than 300 sets of different types of concrete pumps (Driven by Diesel Engines and Electric Motors, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise buildings, high-speed railways, bridges, tunnels, and so on.
Technical Advantages
1.Powerful machine:adopting electric motor(best in China), diesel engine(Yuchai or Weichai & Deutz).
2. High-quality electrical components, such as Siemens, Mitsubishi, etc.
3. Hydraulic systems also adopt famous brand elements, using South Korean Kawasaki or German REXROTH products.
4. Concrete piston can run back to the washing tank, which can easily change the piston and is convenient for maintenance.
5. Perfect after-sales service.
6. High-quality parts, reducing the cost to use.
Working Applications Fields:
