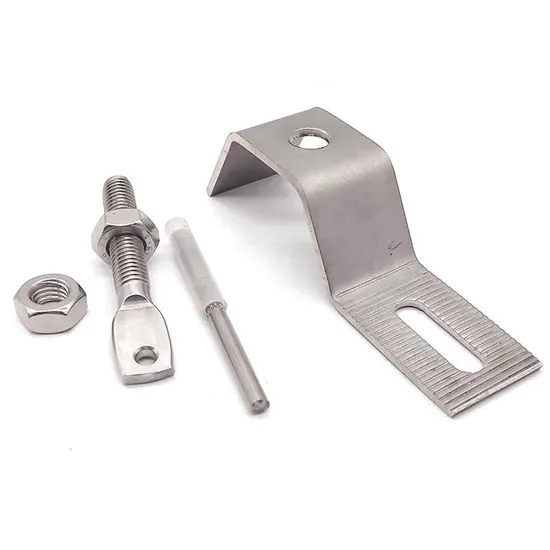

Aluminum Photovoltaic PV Mounting Solar Panel Stainless Steel Tracking Rail-Less Brackets Hooks

Product Description

Aluminum Photovoltaic PV Mounting Solar Panel Stainless Steel Tracking Rail-Less Brackets Hooks

These products are customized steel thick heavy metal parts made of Q345 used on the house foundation, bridge, road-highway, etc., a 1.2kw laser cutting machine cuts it. The cutting edge of these parts is very smooth and the tolerance is controlled within 0.05~0.1mm according to the drawing required measure, which is a very high standard in the whole industry.
We offer customized laser-cutting services for steel, copper, aluminum, etc. too The thick can be arranged 1~50mm.
ABOUT US : BASHIKER is a leading manufacturer of Metal Parts, Metal Bracket, Screw Conveyor Systems, helical pile systems, hydraulically-driven push pier systems, anchoring and earth retention systems, and supplemental crawl space support systems. Founded on the principles of integrity, quality, and service, our mission is to provide the industry with innovative solutions that are appropriately designed and tested, expertly installed, and dependable to perform as promised. Licensed professional structural and geotechnical engineers design the BASHIKER line of foundation stabilization products. All new construction and retrofit foundation support systems are highly specialized and require a thorough understanding of load paths and interaction with interface materials. BASHIKER'S products are designed under traditional, accepted AISC methods, and then tested to confirm product capacities.
Specification :
Place of Origin
Chifeng, China
Brand Name
BASHIKER
Model Number
ZX2116
Product name
Custom Sheet Metal Parts
Process
Laser Cutting Bending Stamping
Material
Iron
Thickness
Customized Thickness
Material Capabilities
Steel/Aluminum/copper/Stainless Steel 316/etc
Quality Control
100% Strict Inspection
Standard
High Precision Non-standard
OEM
Customized OEM Stamping
Advantage
One-stop Solution
Tolerance
0.05mm-0.1mm
Screws
Metric screws: m3 has a diameter of 3mm, lengths ranging from 6mm to 100mm, and a pitch of 0.5mm; m4 has a diameter of 4mm, lengths ranging from 8mm to 120mm, and a pitch of 0.7mm; m5 has a diameter of 5mm, lengths ranging from 10mm to 150mm, and a pitch of 0.8mm.
British screws: 1/4" has a diameter of about 6.35mm, lengths ranging from 1/2" to 6", and a pitch of 20tpi (threads per inch); 3/8" has a diameter of about 9.53mm, lengths ranging from 1/2" to 8", and a pitch of 16tpi.
Metal flexible connectors
8-inch metal flexible connectors: The nominal diameter is 8 inches, which is approximately 203.2 mm when converted to metric size. The standard length is between 500mm and 3000mm.
Cast iron connectors
1.2-inch cast iron connectors: suitable for steel pipes with an outer diameter of 41-43mm.
1.5-inch cast iron connectors: suitable for steel pipes with an outer diameter of 47-49mm.
Door hinges
3.5-inch door hinges: the size is 3.5 inches × 3.5 inches, about 8.9 cm × 8.9 cm, the thickness is 0.087 inches, the rounded corners are 1/4 inches, and there are 6 holes.
Hot-dip galvanized steel wire arch bracket bow strips
Specifications: 4.5-4.8-5.0, 5.3-5.6-5.9, 6.0-6.2-6.5, 6.8-7.0-7.5, 7.8-8.0-8.5, 9.0-9.5-10.5, etc. Welcome to contact us for further discussion !!!
