Waste Tire Recycling Line /Tire Cutter Machine /Tire Shredder Machine

Product Description

Waste tire recycling line /tire cutter machine /tire shredder machine
The waste tire recycling machine is a piece of new innovative equipment. Rubber powder production line is used for processing used tires and rubbers to fine rubber powders. End product size can reach 30-120 mesh free of steel wire and fiber.
Product Description
waste tyre -- tyre debeader -- tyre cutting machine -- whole tyre shredder -- big conveyor equipment -- rubber crusher -- big shaking screen -- small conveyor equipment -- magnetic separator -- small shaking screen -- fiber separator -- 5-30 mesh powder -- rubber fine grinder -- 40-120 mesh powder.

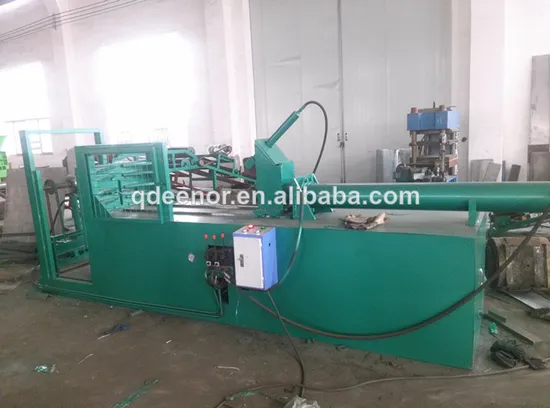

Tire debeader	The first step in tire recycling procession Heavy duty body Hooks and cross pulling die made of 45# steel, tempered and quenched Equipped with protection frame avoiding the dangers during working Two series: hydraulic one and mechanic one Easy to operate and change spare parts (hooks and cross pulling die)
Tire cutter	Cutting tires into pieces before shredding Small tire pieces are easier to process in shredder Knives made of YG-20 steel, long using time Hydraulic control One clamping cylinder and one cutting cylinder Equipped with a roller platform to process big tires
Tire shredder	The high-capacity shredder was specially developed for direct size reduction of tires into cleanly cut tire chips, size 50x50 mm. cutting shafts for the production of larger tire chips are available high torque at low speed cut even the strongest tires into pieces. All construction characteristics are designed for continuous operation in order to achieve highest throughput rates at lowest costs. Extremely precise tolerances between the cutting knives produce cleanly cut tire chips at low energy consumption. The cutting knives made of high quality alloy steel can be re-sharpened and reused which increases the service life and reduces the operating costs. The complete cutting chamber is lined with hard wear plates. Large doors allow for easy access into the cutting chamber.
Tire cracker	The shear between the two rollers will make tire chips into powders as well loosen rubbers, steels and textiles Roller body made of cast steel Surface of roller made of alloy steel, welded when worn out One flat surface roller and one teethed roller, high throughput of powders Bottom made of cast iron Emergency stop when overload Distance between the two rollers can be adjusted. Hard gear gearbox Equipped with screening machine, magnetic separator and fiber separator, 99% purified rubbers will be got. Finals: 8-30 mesh
Magnetic separator	Muti-stage belt style magnetic separator can reach more purified rubbers Separated steels will be in one place, easy to collect Permanent magnet, no more power consumption
Fiber separator	After the grinder, the nylon wires will be grinded into fluff; According to centrifugal force, density difference, the fluff will be separated. The spin fans inside the cyclone barrel driven by the motor throw the compounds to the wall, at this time, light fluff will be upwards and fall down into the inside barrel; heavy rubbers will fall down directly, so textiles will be separated
Pulverizing unit	The pulverizing unit is made of 3 sets pulverizers with a cyclone silo. The pulverizer consists of frame, main motor, non-pole reducer, feeding device, adjusting device and a pair of rotating disc and fixed disc. The fine powders will be achieved by the grinding and shearing of the two pin discs. The machine is cooled by water and air to ensure the quality of the powders. Non-pole reducer can adjust speed of the feeding device to meet the material demands. The cyclone silo will collect the rubber power without dust Finals: 30-120 mesh
