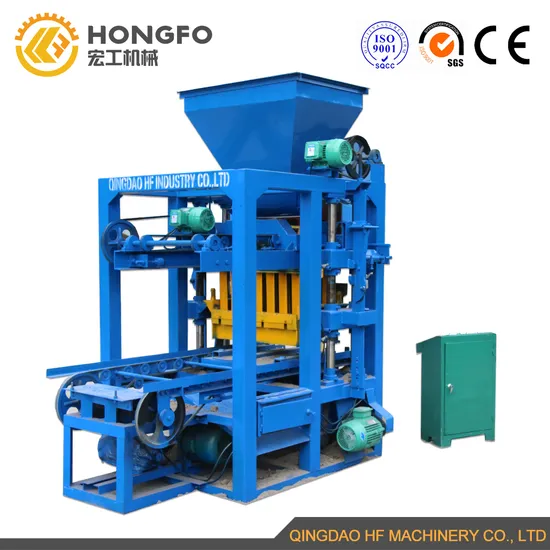

Qt4-26 Semi Automatic Interlocking Concrete Block Making Machine Machine for Concrete Block
| US$4,000.00-5,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QT4-26 Block machine
Customized
Customized
Automatic Grade
Manual
Type
Vibration Molding
Main Vibration
Platform Vibration
Cycle Time
35-45seconds
Freqyency
2800r/M
Total Power
9.7kw
Pallet Size
1020X570mm
Weight
1500kg
Productivity 8′ Block
300-360PCS/Hour
Productivity Paver
700-800PCS/Hour
Plant Area
800 Square Mrters
Control Model
Limit Switch
Transport Package
Container or Wooden Box
Specification
1350x1460x1800mm
Trademark
HF
Origin
China
HS Code
8474809090
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
2000.00cm * 1300.00cm * 1600.00cm
Package Gross Weight
3000.000kg
Product Description
Product DescriptionQT4-26 semi automatic vibration brick block making machine
Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold
1. Electric QTJ4-26 is a kind of semi-automatic type based on the orignal medium and small-scale block machines by us.
2. The movement of the upper mould and the baiting valve are controlled by electric motor greatly save the work labor and imporve the production efficiency.
3. This machine use electric-driven and mechanical control together to finish machine different movement, and make sure the machine work right and reduce the operation fault,it is easy to operate.
4. It use upside and bottom vibration together,quick molding,high density and intensity.
5. Electric QTJ4-26 can also work with two machines together,greatly improve the productivity.
QT4-26 Block making machine specification
| Main Technical Specifications | |
| Overall Dimension | 2060x1730x2580mm |
| Exciting power | 35KN |
| Molding pieces | 400*200*200 4pcs/mold(hollow brick) 480-550pieces per hour 400*240*200 3pcs/mold(porous brick) 360-415pieces per hour 240*115*53 12pcs/mold (solid brick ) 3120-3600pieces per hour |
| Productivity | 2000-2500pcs/day |
| Cycle Time | 26-30 seconds |
| Vibrating Frequency | 4200 rolls/minute |
| Weight | 2000kg |
| Motors Power | 14.25KW |
| Pallet Size | 910x480mm |
