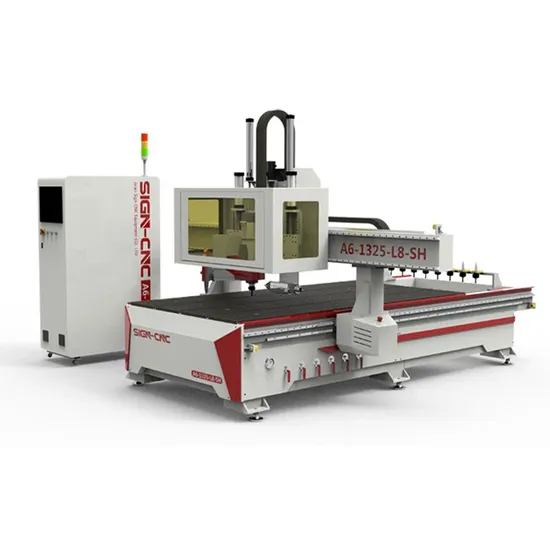

1325/1530/2030/2040 Sign CNC A6-1325-L8-S Atc CNC Router with Cut Saw for Wood /MDF/Acrylics Processing

Product Description

1325/1530/2030/2040 Sign CNC A6-1325-L8-S Atc CNC Router with Cut Saw for Wood /MDF/Acrylics Processing
PRODUCT SPECIFICATIONS

Model	A6-1325-L8-S
X, Y Working size	1300*2500mm
Z feed Height	300mm
Table Surface	Vacuum table with T-slot
Vacuum pimp	7.5kw air cooling
X, Y Structure	25# Square Guide Rail, Rack and Pinion
Z Structure	25# Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle Power	9 kw ATC air cooling spindle
Spindle Speed	0-24000RPM
Saw	X, Y axis direction change automatically
Drive Motors	Servo motor and driver
Working Voltage:	380V 50/60Hz
Command Language	G code
Control System	Taiwan Syntec 60WE
Oil lubrication system	Automatically
Dust collector	3kw double bags
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Rotary system
Package	Wooden case by plywood with steel tube tray
Warranty	Two years

1. Tiwan SYNTEC control system.
--- Advanced control system, After-sales service worldwide.
2. Disc ATC (automatic tool change).
--- 8-12 tool Magazine. We can make it according your required 8-12 cutter automatic change, for complex wood carving
3. HQD and HSD 9.0kw air cooling spindle.
--- Import famous air cooling spindle is big power.
4. High power inverter
--- High power 11kw inverter to insure the spindle working stable.
5. Saw for cutting
--- Saw working for fast cut and X, Y axis direction change automatically
6. 25# square guide rail, And original rack.
--- High quality Taiwan guide rails, and 25mm square guide rails for the long lifetime and high precision.
7. Servo motor.
--- Japaness / Taiwan servo motor, acceleration performance is high, to ensure the stability and high speed work.
8. Automatically lubrication system
--- Inject oil for the machine all guide rails, keeping machine move smoother
9. Breakpoint memory
--- Can continue to work afte power off & breaking knife
11. Tool sensor
--- Adjust the distance from materials to cutter automatically.
Samples
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping

Company Profile
Our Advantages
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
