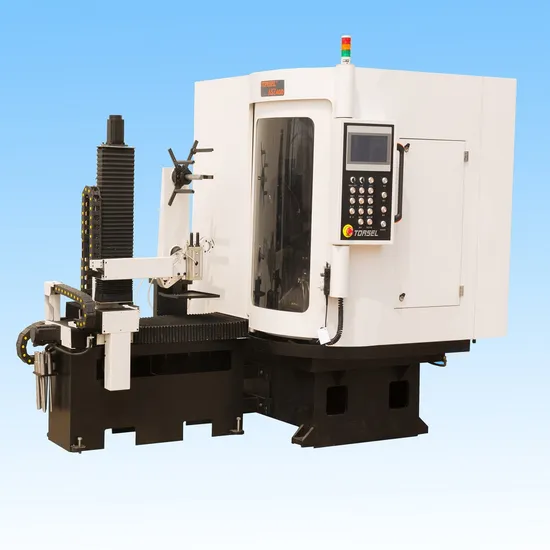

New Condition and After-Sales Service Provided Circular Saw Blade Sharpening Machine

Product Description

New Condition and After-sales Service Provided circular saw blade sharpening machine
1. Machine Features and Advantages 1) Used for grinding tct saw blade tooth side. With auto loading robot Suitable for mass production
2) Easy operation: CNC with friendly interface panel, all parameters can be set directly and stored automatically
3) High efficiency: robot auto load & adjustable grinding speed
4) Good accuracy: <0.02mm, satisfactory sharpening perfomance
5) Good stability: cast iron base, no deformation,low vibration,long term use.
2. Machine Parameters

Saw diameter	140~405mm
Plate thickness	<8mm
Side relief	0°~ 4°
Side angle	-5°~+5°
Hook angle	-5°~+30°
Bore diameter	15.88~80mm
Pitch	<80mm
Tip length	<20mm
Wheel power	0.75KW
Wheel diameter	80~120mm
Wheel bore	32mm
Wheel linear velocity	30m/s
Grinding speed	2mm~10mm/s
Processing efficiency	4~15 tip/min
Grinding accuracy	<0.02mm
Coolant tank	70 L
Input voltage	380V 50Hz(OR 220V60Hz)
Power	Approx 3.7KW
Dimension	2800mmX1400mmX1900mm
Weight	2200kg

3. Machine Details
4. Machine improrted components

Crossed roller guide	THK(Japan)
Ball screw	IF(Germany)
Servo	Inovance
PLC	Inovance ARM600
Pneumatic component	SMC(Japan)

5. Company Information
FAQ
1. What products do we have?
Four categories saw blade sharpening machine: 1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade. 2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade. 3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade. 4. cold saw blade sharpeing machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our saw blade sharpening machine? 1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
