Estop China 3 Axis CNC Vertical Metal Milling Machine for Mechanical Processing

Product Description

Company Profile
ESTOPCNC is a manufacturer, distributor and exporter of industrial master machinery and CNC machine tools in China. The company is headquartered in Dongguan city, Guangdong Province. Company by a group of in Taiwan and mainland China engaged in more than 20 years of CNC milling machine manufacturing engineers, maintenance technicians, relying on the powerful world factory location advantage and talent advantage, constantly promote the shift to China smart upgrade, made in China to intelligent manufacturing in China. Cost-effective milling machine, grinding machine, gantry processing center and other CNC machinery and equipment to the international market.
ESTOPCNC in the form of diversified, intelligent response to changing market environment, from the introduction of advanced technology, digestion and absorption innovation, to fully replace imported Japan, Taiwan machine tools, in domestic application, and after ten years of precipitation and accumulation, reverse exports to Japan, Taiwan province, North America, Europe and southeast Asia and the Middle East countries, combined with professional management operation system and professional international after-sales service team, won the user's praise and affirmation.
We will continue to bring you high quality and a variety of machining center equipment. Single-minded, do a good job of machinery, good service hexahedral processing, that is, the perfect quality and excellent global after-sales service!

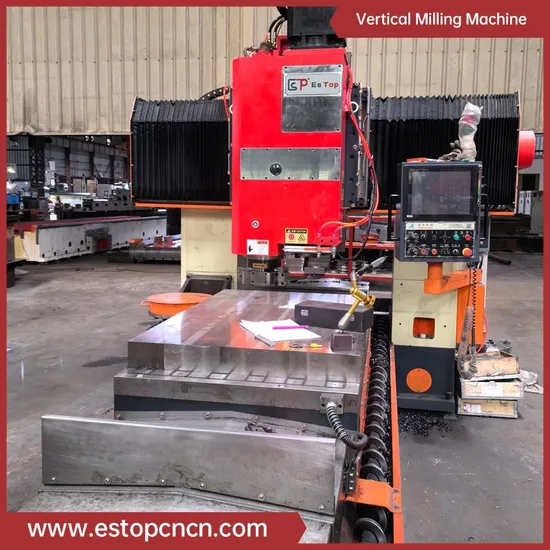

Dongguan ESTOP Machinery Co., Ltd. Model:VM-1320NC
Estop China Large 3 Axis CNC Vertical Metal Milling Machine For Mechanical Processing
CNC system once-setting for automatic guides where work-piece loading place, automatic measurement, automatic cutting, processing and setting at the same time, which can reduce machine waiting for manual operation and increase Productivity, to secure high-accuracy of dimension, flatness.

Product Description

VM-1320NC Specifications
No.	Item	Description	Specification
1	Model	EsTop CNC vertical milling machine	VM-1320NC
2	Net width	Net width of inside	1350
3	Cutting capacity	Max. machining length mm	2000
		Max. machining width mm	1300
		Max. processing height mm	400
4	Worktable	Worktable size mm	2000*1000
		Max loading weight kg	6000
5	The milling head assembly	Spindle power kw	11
		Spindle taper	BT50(7:24)
		Speed of mainshaft C/S	75/115/165/240/345/505
6	Travelling speed	X axis moving speed mm/min	0-8000
		Y axis moving speed mm/min	0-8000
		Z axis moving speed mm/min	0-8000
7	Motor power	X,Y,Z axis motor kw	3,3,3
		Chip-removal motor kw	1/2
8	Dimension & weight	Machine height mm	2854
		Machine area mm	5487*2895
		Machine weight kg	12000

Application:	Steel plate
Process Usage:	Steel plate-Cutting CNC Machine Tools
Movement Method:	Linear Control
Control Method: CNC system:	CNC Control FANUC, SIEMENS, MISTSUBISHI etc
Performance Classification: Trade terms: Delivery time: Machine warranty:	CNC Machine Tools FOB, CFR,CIF or others terms are all acceptable. Within 45 working days after received your deposit 12 month

One-Step Shopping
You can click on the picture to view the products you are interested in.

Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
FAQ
Q1. What is the payment Terms ? A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you. Q2.How can I choose the most suitable machines ? A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you. Q3. What is the package of the machines? A3: The machines standard packed by iron pallets with plastic films. Q4. What is your trade terms? A4: FOB, CFR, CIF or others terms are all acceptable. Q5. What is your minimum order quantity and warranty? A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine. Q6.When is the delivery time? A6: We will delivery then within 2-30 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly. Q7: How to ensure the quality? A7: 1.Firstly we choose best material for the processing. 2.Being and after processing, we will inspect the finished parts. 3.Machine finished, our company QC will test the machine as per customer requests. Q8: How to deal with the after-sales service? A8: 1.Technician available for training and installation at customer's company 2.Internet service by sending emails and videos, communicating online or calling 3.1year warrantee. During the warranty period, we will sent damage of the machine parts(non-human factors)for free. Q9: How do we get the training for the machines? A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to our place.
