Android Handheld Industrial PDA Data RFID Reader

Product Description

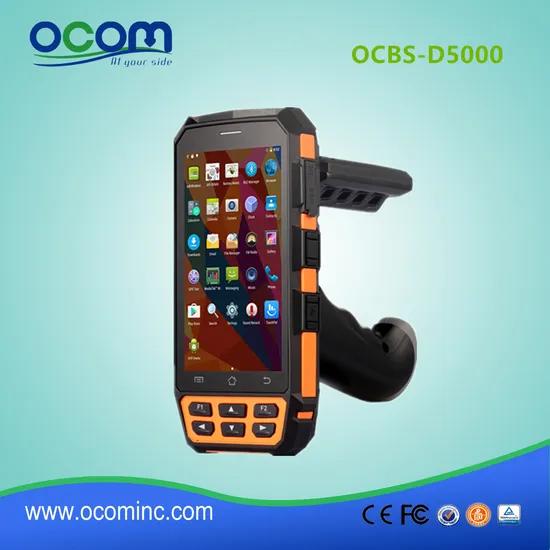

Android handheld industrial PDA data RFID reader
(Model: OCBS-D5000)
More details can be found on: http://szocomtech.en.made-in-china.com/products/OCBS-D5000-Rugged-Handheld-Android-5.1-4G-Industrial-Data-Terminal.html#.WkSnCNIdh0s
Description:
The PDA is our newly published android industrial PDA, it's handheld and also widely known as data collector. The PDA is with multiple configuration for option, such as wifi, bluetooth, 1d/2d barcode scanner, 3G, GPS, camera etc.

FEATURE:
- Android 5.1.1
- 1GB RAM, 8GB ROM
- Gorilla 5.0 in. 720*1280 Gorilla HD Screen
- Rugged IP65/1.5 m Drop Tolerance
- Rechargeable li-ion polymer, 3.7V, 8000mAh Battery
- Rear Camera 8 MP, auto-focus with LED flash
- Support 4G/Wifi/GPS/Bluetooth
- HHW Software Development Kit
- 1D/2D Barcode Scanner(optional)
- RFID LF/HF/UHF/NFC (optional)
- TCS1SM Capacitive Fingerprint Sensor(optional)
Specification:

PHYSICAL CHARACTERISTICS
Dimension	170mm(H)x85mm(W)x23mm(D)±2 mm
Weight	Net Weight :380g (including battery&wrist strap)
Display	Gorilla 5.0 in. TFT-LCD(720x1280)touch screen with backlight
Backlight	LED backlight
Keypads	3 TP keys, 6 function keys, 4 side buttons
Expansions	2 PSAM, 1 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.7V, 8000mAh
PERFORMANCE CHARACTERSTICS
CPU	Quad A53 1.5GHz quad-core
Operating System	Android 5.1.1
Storage	1GB RAM, 8GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp.	-20ºC to 50ºC
Storage Temp.	-20ºC to 70ºC
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge
DEVELOPMENT ENVIRONMENT
SDK	HHW Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	TDD-LTE Band 38, 39, 40, FDD-LTE Band 1,2,3, 4,7; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge 850/900/1800/1900MHz);
WLAN	2.4G/5G Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode	1D laser engine		Honeywell N431x
	Symbologies		All major 1D barcodes
2D barcode	2D CMOS Imager		Honeywell N6603
	Symbologies		PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution	8.0 megapixel
Lens	Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF	Frequency		125KHz/134.2KHz(FDX-B/HDX)
	Protocol		ISO 11784&11785
	R/W Range		2cm to 10 cm
RFID HF	Frequency		13.56MHz
	Protocol		ISO 14443A&15693
	R/W Range		2cm to 8cm
RFID UHF	Frequency		865~868MHz or 920~925MHz
	Protocol		EPC C1 GEN2/ISO 18000-6C
	Antenna Gain		Circular antenna(2dBi)
	R/W Range		1 m to 1.5 m(tags and environment dependant)
Active 2.45GHz	Read range more than 200 m (customization)
433MHz	Read range more than 200 m (customization)
ZigBee READER(OPTIONAL)
Protocol	IEEE 802.15.4 (customization)
Reading Range	100 m to 200 m(customization)
FINGERPRINT READER(OPTIONAL)
Sensor	TCS1SM
Sensor type	Capacitive, area sensor
Resolution	508 DPI
Performance	FRR<0.008%, FAR<0.005%
Capacity	1000
PSAM SECURITY(OPTIONAL)
Protocol	ISO 7816
Baudrate	9600, 19200, 38400,43000, 56000, 57600, 115200
Slot	2 slots(maximum)
ACCESSORIES
Standard		1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable
Optional		Cradle,Handle, UHF gain board

Power adaptor for option:
Europe, British, America, Australia, Asia etc.

Production capacity and lead time:
We have strong production capacity; we can produce thousand of printers and barcode scanners per day. Normally, our lead time between 1-5 days.

Shipping method:
Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)

Warranty:
12+1 months of shipment normally. Some designated models can have as long as 24 months warranty. Spare parts can be provided for mass order.

Payment term:
T/T in advance, Western Union, PayPal, Escrow, L/C, Cash, etc
