EDM Wiremetal Forming Wire Cutting EDM Economical Precision 5-Axis Fast Borui Dk7736 CNC Wire Cutting EDM Machinecnc EDM

Product Description

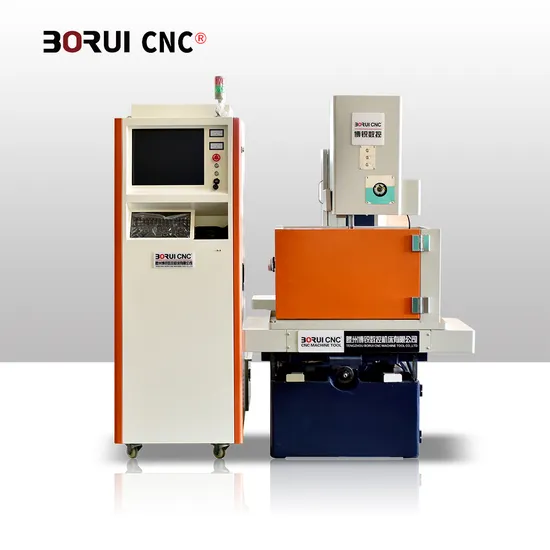

BORUI DK7736 cnc edm cutting machine wire small wire cutting machine
Product Description
The main specification :

Model	DK7720	DK7735	DK7745	DK7740F	DK7750
Table Size(mm)	700×440	710×470	810×570	1000×540	1000×650
Table Travel(mm)	200×250	350×450	450×550	400×680	500×630
Max Processing Thickness(mm)	300	400	400	400/600	600
MachinedTtaper(mm)	6°,15°,30°/80
Maximum Cutting Speed(mm²/min)	≥100
Optimum Precision Of Machined Surfaces(μm)	≤2.5
Electrode Wire Dimension(mm)	0.10-0.20
Alignment Speed Of Electrode wire(mm)	11.5
Machining Precision	GB7926-87
Power Supply	50Hz 380V
Maximum Workpiece Weight(kg)	150	300	450	500	700
Machine Weight(kg)	700	1300	1800	2000	2400
Machine Outer Dimension(mm)	1100×800×1400	1240×1170×1400	1600×1240×1400	1700×1600×1600	1720×1680×1700
Machine Packing Size (mm)	1200×1000×1500	1700×1370×1700	2000×1800×1900	2000×1800×1900	2000×1900×2100
Model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Table Size(mm)	1140×650	1140×750	1350×750	1350×985	1700×1170
Table Travel(mm)	500×800	630×800	630×1000	800×1000	1000×1200
Max Processing Thickness(mm)	500/600	700	600/800	800	800/1000
MachinedTtaper(mm)	6°,15°,30°/80
Maximum Cutting Speed(mm²/min)	≥100
Optimum Precision Of Machined Surfaces(μm)	≤2.5
Electrode Wire Dimension(mm)	0.10-0.20
Alignment Speed Of Electrode wire(mm)	11.5
Machining Precision	GB7926-87
Power Supply	50Hz 380V
Maximum Workpiece Weight(kg)	1000	1000	1000	2000	2600
Machine Weight(kg)	2600	3200	3500	4000	5600
Machine Outer Dimension(mm)	2000×1900×1700	2100×1940×1780	2300×2200×1800	2600×2400×1800	3000×2800×2500
Machine Packing Size (mm)	2000×1900×2100	2500×2200×2200	2500×2200×2200	3000×2800×2200	3400×3100×2900

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
