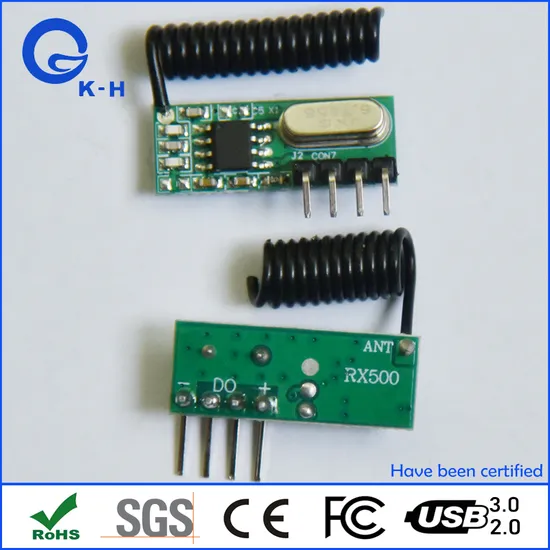

315/433m Wireless Remote Control Transceiver PT2262 HS2272 Receiver Module

Product Description

Product Description:
1. Working voltage: DC2.5V-5V
2. Working current: 7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Receiver module can store remote control: 16
7. Support coding chip model: EV1527, 315MHZ, 433MHZ
When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low level. Specification

Model	433MHZ 315MHZ wireless receiver module
Operating frequency	433.92 MHz/315MHz
Operating voltage	DC2.5V-5V
Transmit powe	>=10mW
Transmission Speed	50-60KHZ
Maximum load	7mA
Signal Sensitivity	-108DBM
Transmission distance	100 meters(Open space)
Oscillation resistance	As customer's request
PCB size	28*12MM
Sensitivity	better than -107dBm (50Ω)
Signal output method	L4:Latch-signal interlocking M4:Momentary-signal non-locking T4:Toggle-signal self-locking Signal delay function
Decoder chip	Learning code (Program IC), It can learn with transmitter which is fixed code (PT2262/PT2264/SC2262) and learning code(EV1527)
Power Type
Support Services	Support shipping for Amazon, free QR code stickers. WELCOME

Working Mode Momentary, Toggle, Latched and Delay adjustable Momentary press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control Toggle press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control Latched press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
