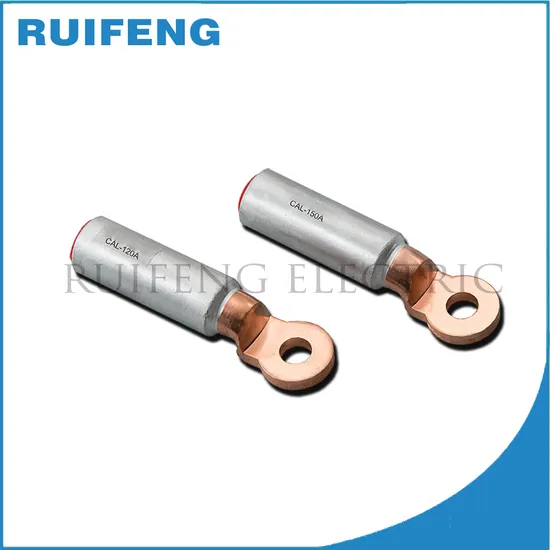

IEC 61238-1 Cal Bimetal Cable Al. Cu. Lugs in Manufacturers Hex Crimping
| US$0.10-10.00 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
Cal-A
Application
Conduct Electricity
Character
High Conductivity
Species
Terminal
Production Process
Punching
Shape
Tubular
Interface Type
Crimping
Certification
SGS
Brand
Ruifeng
Sample
Free
OEM
Accept
Finished
Acid Cleaning
Techniqueof Production
Friction Welding
MOQ
1000PCS
Function
Waterproof Dustproof
Application Place
Conduct Electricity
Delivery Term
Express,Air Fright, Sea Freight
Delivery Time
3-5 Working Days
Customized
Accept
Shape Type
Round
Availability of Goods
50000PCS/Month
The Number of Holes
1
Inventory Quantity
10000
Surface
Smooth
Transport Package
1.Standard Carton Box 2.Pallet 3packing on Request
Specification
16-630mm2
Trademark
RUIFENG
Origin
Zhejiang, China (Mainland)
Production Capacity
300000 Piece/Pieces Per Month
Product Description
CAL bimetal cable lugs manufacturersMaterial:
E-Cu; Al-99.6%
Technical Requirements:
1.Due to the coupling effect when Aluminum Comes in contact with copper, corrosion will happen in the short time.
The best solution is to use aluminum-copper bimetal connectors. It is according with IEC 61238-1.
2.The transition section between aluminum and copper is produced by friction welding, bending 180°,no breaking weld.
3.The marking should be clearly, well-proportioned with the depth of 3mm;
4.Closed angle and edge curl are not allowed at the mouth of the pipe
| Type No | Main Dimensions(mm) | ||||
| Φ | D | d | L | L1 | |
| CAL-16A | 11 | 16 | 5.5 | 83 | 42 |
| CAL-25A | 11 | 16 | 6.5 | 83 | 42 |
| CAL-35A | 11 | 16 | 8 | 83 | 42 |
| CAL-50A | 13 | 20 | 9 | 90 | 43 |
| CAL-70A | 13 | 20 | 11 | 90 | 43 |
| CAL-95A | 13 | 20 | 12.5 | 90 | 43 |
| CAL-120A | 13 | 25 | 13.5 | 115 | 60 |
| CAL-150A | 13 | 25 | 15.5 | 115 | 60 |
| CAL-185A | 13 | 32 | 17.5 | 125 | 60 |
| CAL-240A | 13 | 32 | 19.5 | 125 | 60 |
| CAL-300A | 13 | 34 | 22.5 | 135 | 62 |
FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantity. Generally, the delivery time will be within 15 to 30 days.
4. Package information
A:For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box, about 1000kg per pallet
5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free
6.How to cantact us?
A:Send your inquiry details in the below, Click "send" now!
