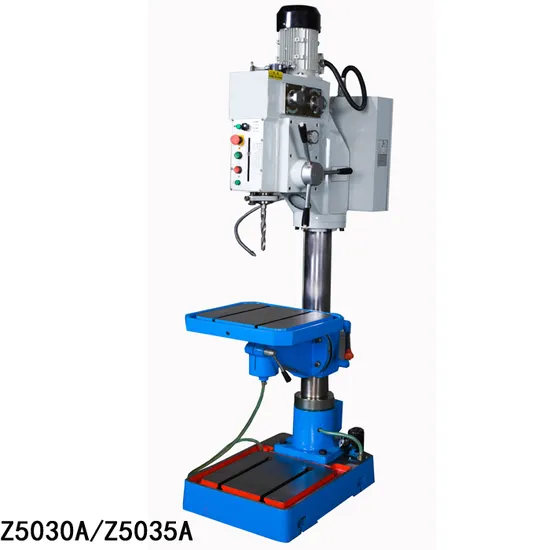

Mechanical Pillar Type Column Vertical Drilling Machine
| US$3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
z5050A
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Dia. of Column
180mm
Spindle Travel
240mm
Spindle Speed
42-2050rpm
Table Size
550X470mm
Main Motor
2.2/2.8kw
Packign Size
108X62X220cm
Name
Vertical Drilling Machine
Drill Capacity
50mm
Max Tapping Capacity
M30
Spindle Feed
0.07-0.4mm/R
Spindle Taper
Mt4
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
100sets/Month
Product Description
mechanical Pillar Type Column Vertical Drilling MachineMain features:
The machine is designed with multi- Function of drilling, Broaching, reaming,
tapping and facing milling.With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can tilt 45degree1)
5. High quality cast iron.
6.Use electric clutch to transmission feed.
7. Digital readout display of cutting depth.
8.Worktable can be rotated 360 ° and inclined ± 45 °
9. Two speed motor,12 steps gear shift.
10Worktable can be lifted by motor
11.With tool device,coolant and fender
| Model CODE NO. | Z5050A | Z5040 |
| Max.Drilling capacity (mm) | 50 | 40 |
| Max.Tapping capacity (mm) | M30 | M27 |
| Diameter of column (mm) | 180 | 160 |
| Spindle travel (mm) | 240 | 180 |
| Distance spindle axis to column generating line (mm) | 360 | 360 |
| Max.Distance spindle nose to table (mm) | 460 | 460 |
| Max.Distance spindle nose to table (mm) | 1200 | 1200 |
| Spindle taper | MT4orMT5 | MT4 |
| Spindle speeds range (r/min) | 42-2050 | 42-2050 |
| Spindle speeds series | 12 | 12 |
| Spindel feeds (r/min) | 0.07 0.15 0.26 0.40 | 0.07 0.15 0.26 0.40 |
| Dimension of worktable surface (mm) | 550×470 | 550×470 |
| Table travel (mm) | 550 | 550 |
| Dimension of base table (mm) | 450×440 | 450×440 |
| Overall height (mm) | 2380 | 2330 |
| Main motor (kW) | 2.2/2.8 | 2.2/2.8 |
| Goolant motor (W) | 40 | 40 |
| G.W/N.W (kg) | 800/730 | 750/680 |
| Packing dimension (cm) | 108×62×215 | 108×62×215 |
| Standard accessories |
| * Drill chuck * Arbor * Taper sleeve * Drift * Eyelet bolts * Wrench |
| Special accessories |
| * Multi-spindles * Angle vice * Safety guard |
