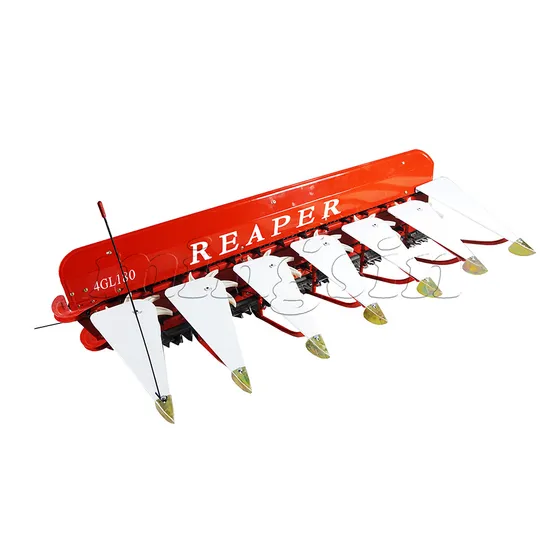

120cm Small Rice Harvester, Wheat Reaper, Gasoline Harvester, Paddy Reaper

Product Description

Product Description
Products:
The mini wheat and rice cutting shining machine of 4G series has simple and reasonable structure, which is convenient for maintenance, with the advantages of small volume, light weight, low energy consumption, stable performance, good reliability and strong applicability, etc. It is especially ideal for cutting rice, wheat, soybean and reed, at the small, mountainous and hill area, and the areas that take advantage of straws.
1. rice and wheat harvester is used to harvest rice, wheat, soybean, forage grass and other simple Individual plants.
2. rice and wheat harvesterhas the characteristics of simple& proper structure operation and repairing, small volume, light weight, low energy consumption, stable performance and strong applicability.
3. rice and wheat harvester is specially applicable for small land blocks, mountainous regions, hilly and the areas that need straw utilization.
Our series of reaper and mini harvester are widely used in harvesting of individual plants, including paddy, wheat, grain, pasture, medicinal materials, maize, grain sorghum,osier, reed and so on. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Features:
1.This machine is mainly applicable for harvesting wheat, rice,beans,sorghum, reeds,soybean,alfalfa,barley,oats,chili, buckwheat, etc.. It also can be used to cut all kinds of forage grass.
2.It can be worked in small piece of field, mountain land and hills, etc.
3.The wheat reaper machine is simple structure, strong ability to rake, durable, easy to operate and maintenance. Small volume,light weight, low consumption, good performance, strong adaptability and etc.
4.What's more, it is high quality and reasonable price, which could met the requirements of intensive cultivation.
5.It is used for reaping wheat or rice that is between 0.5- 1.2meters high. Reaping width : 1 meter. Reaper is a machinery for felling crops straw, then paving it neatly on the stubble, so that easy for the drying of crops, the operation is simple and comfortable, easy to work on a large area for a long time.
6.The first domestic shaft and whole aluminum transmission system; lightest weight, easy to carry and operate, suitable for different terrain and slope; Low fuel consumption.
Cutter height from the ground can be adjusted according to the need. According to dry land or paddy field respectively equipped with rubber wheel or iron wheel; The operation convenience, suitable for all kinds of people; After fine-tuning, it can be used to harvest many kinds of each phase height of crops.

Picture	Item	Index
	Cutting Width(mm)	800
	Min Cutting Height(mm)	≥50
	Laying angle(degree):	90 ± 20
	Placing type	Sidewise&Banded Placed
	Production efficiency(hec./hour)	0.1333-0.2
	Matched Power(4.0kW)	JF168gas-engine5.5hp
	Net weight (kg)	116
	Gross weight(kg)	146
	Packing size (length*width*height) m	1.05*1.0*0.65
	Total loss rate(%)	Rice and wheat<1
	Outside dimensions(length*width*height) m	2.1*1.1*1.0

4G100 REAPER PARAMETERS:

Picture	Item	Index
	Cutting Width(mm)	1000
	Min Cutting Height(mm)	≥50
	Laying angle(degree):	90 ± 20
	Placing type	Sidewise&Banded Placed
	Production efficiency(hec./hour)	2.5-4
	Matched Power(4.0kW)	170F/diesel engine 4.5hp
	Net weight (kg)	210
	Gross weight(kg)	250
	Packing size (length*width*height) m	1.3*1.05*0.65
	Total loss rate(%)	Rice and wheat<1
	Outside dimensions(length*width*height) m	2.1*1.25*1.0

4G120 REAPER PARAMETERS:

Picture	Item	Index
	Cutting Width(MM)	1200
	Min Cutting Height(MM)	≥50
	Laying angle(degree):	90 ± 20
	Placing type	Sidewise&Banded Placed
	Production efficiency(mu/hour)	3-5
	Matched Power(3.64KW)	170F/ Sanhuan diesel engine 4.5hp
	Net weight (KG)	216
	Gross weight(KG)	260
	Packing size (length*width*height)M	1.47*1.05*0.65
	Total loss rate(%)	Rice and wheat<1
	Outside dimensions(length*width*height)M	2.15*1.5*1.1
