EPS Styrofoam Foam Cement Precast Concrete Wall Panel Machine Insulated Lightweight Sandwich Wall Panel Production Line EPS Wall Panel Machine for Fast Wall

Product Description

EPS Styrofoam Foam Cement Precast Wall Panel Production Line Insulated Lightweight Concrete Sandwich Wall Panel Machine Insulation EPS Wall Panel Machine for Fast Wall
Product Description
Wall panel for concrete precast houses:
Lightweight sandwiched wall panel providing a solid structure and
superior quality wall finishes to ensure a straight and smooth wall after completion.
They can be used as either a standard structural wall panel, or as a retaining wall section, depending on the requirement on site. The reinforcement steel and foundation detail will alter, depending on the use of the wall panel.
What is Light Weight Wall Board/EPS Cement Wall Board:
EPS sandwich cement wall board is a new type of high-grade light wall panel material with EPS mortar as core material, calcium silicate board as the surface material and properly mixed with fly ash, slag and additives, and the panel formed by the EPS wall board making machine.
use perlite/ ceramsite/ foaming cement to make lightweight walling material sandwiched concrete panel making machine panel
Advantages of polystyrene concrete as a material
Patented production technology and unique composition ensure excellent performance characteristics of expanded polystyrene:
excellent load-bearing capacity;
low price per cube with ease and high speed of installation of products;
increased moisture resistance;
rot resistance;
low flammability;
high heat and sound insulation;
frost resistance (at least 200 defrosting and freezing cycles);
service life - more than 100 years.

Product Parameters
Main machine parts for
Sound Insulation Lightweight EPS Cement Sandwich wall panel machine/ eps wall panel machine Lightweight Wall Panel Making Machine /Precast Concrete Wall Panel Machine/Wall Board making Machinery/acoustic wall panel making machine

Main part for complete EPS wall panel production line Eps wall panel system for
solid or hollow panel lightweight wall panel
1. Mixing plant

HONGFA mixing plant consists of mixer, movable infusion unit and aggregating system. It can mix all raw material automatically and record every data for production. 3.6CBM capacity mixer guarantees infusion efficiency. It only needs about 15seconds to finish a panel with size 2440*610*100mm.
2. EPS Expander
EPS expander is used for expanding raw polysterene, one-time expander can make EPS around 15-18kg/CBM, interval expander can get proportion on 9-11kg/CBM.
3. De-molding machine
Demolding machine can pull the cured panels out deirectly, Hongfa design it based on 6 years panel manufacturing experience, make it possible that demolding machine is movable, after demolding, the molds can be installed immediately without any
delay.Multiwork is possible so efficiency is triple compared to traditional vertical manual and semi horizontal production line.
4. Recycling unit
Recycling unit can save eveything in production, waste slurry settling in underground mixer, the cement and sand will be
pumped into mixer again for next mixing cycle. Keep production clean and make waste recycling, cost saving.
5. Hollow core panels unit
If you want hollow core wall panels with thickness above 150mm, HONGFA offers complete system solution. Hollow panels
usually use for roof, cladding etc. purpose without any bearing demand.
6. Movable slurry piston pump unit
This unit uses for movable hydraulic slurry infusion, after mixing all raw material in mixer, then slurry pours into this movable
container, it can mix and inject at same time, guarantee slurry not falling down or the heavier material(sand or cement)
seperates from lighter(EPS) one.
Hongfa provide main 3 kinds of EPS wall panel machine :

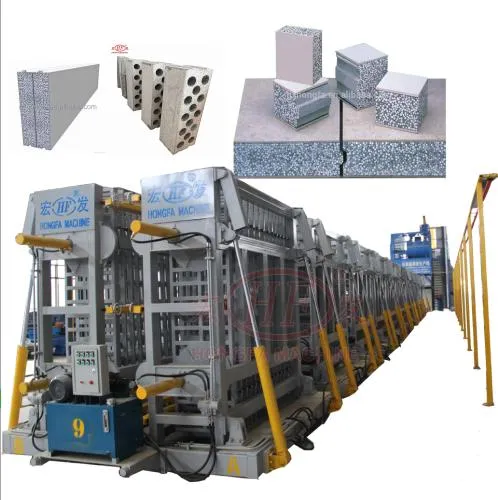

1. Automatic double side opening wall panel machine main data:

Moulding Machine Parameter and Productivity
Overall dimensions(mm)	Power(KW)	Output / Pieces per mould
		60mm	75mm	90mm	100mm	120mm	150mm
3380*3200*2680	4	40pcs	36pcs	32pcs	30pcs	26pcs	22pcs

HFP530A full automatic lightweight concrete wall panel system is Hongfa patent product, for 15 sets molding machine, total production line only needs 5 workers, labor density and intensity is low.
1.Full Automatic
2.Eco Saving and Advanced Technology
3.Low cost and high capacity
4. Easy operation
5. Essy maintainence
6.Adopts touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
One Production line of EPS Foam Cement Panel Machine, Sandwich Panel Production Line, Lightweight Concrete Wall Panel Making Machine Can produce kinds of wall panel:
Raw materials :
Ordinary Portland Cement, Lower Alkalinity Sulfur Acid Salt Aluminum Cement, Polystyrene Foam, Sand, Additives or Fly Ash(Coal Boiler), Water, Perlite, etc.
Main Feasture:

(1)The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
(2) With the same machine, it can adjust the panel size and thickness. The thickness will be from 60 to 250mm.
(3) The closed constant pressure foamng barrel features of high heating efficiency and saves stem.
(4)High precise guiding pressure reducing valve controls the temperature and steam pressure of the closed barrel, ensuring the outcome pressure of the valve constant and the inner temperature controlled wihin ±1%, which keeps the foamed material equal and prevents the bead agglomerate because of the bad temperature control.
(5)With photoelectric or vibration sensor to control material level, ensuring density tolerance within ±3%.
(6)The machine is equipped with fluidized bed dryer, including drying, automatic sieving, depluming and material conveying to silos.
(7)Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
(8)The machine can realize the primary and second expansion.
Suggested Staffing Table of eps sandwich panel production line
EPS sandwich panel price of EPS board sandwich panels machine

Position	Amount(Person)
Moulding/pouring	1
Demoulding&Packing	1
EPS Expander Operation/raw materials	1
Mixer Operation	1
Transportation	1
Total	5

Successful Kinds of EPS cement sandwich panel making machinery machine
♥ Automatic Vertical Hydraulic & Manually Type Production Line
♥ Horizontal Wall Panel Production Line
Packaging & Shipping
Workshop and shipping Lightweight wall panel production line
Company Profile

About Hongfa Group
Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Lightweight Wall Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Organic fertilizer equipment, hydroelectric power plant, Portland Cement Plant, Concrete Pipe Machine, Concrete Tile Machine, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment,etc
Hongfa Strengths
More than 33 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.
Our factory Group'Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.National Enterprice Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protectionb Demonstration Unit
4.High and New Tech Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
