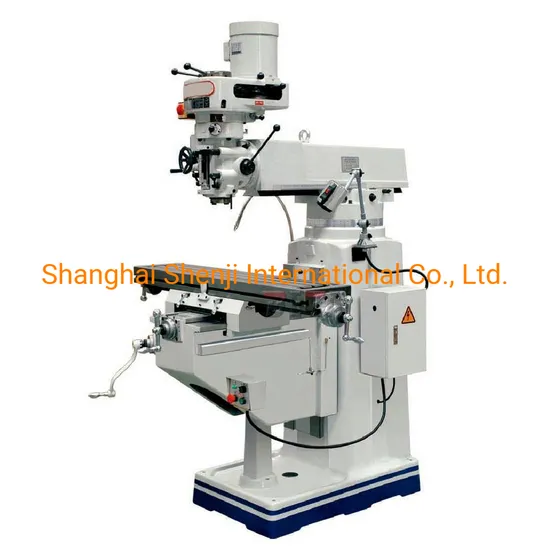

X6325 X6325D Vertical Turret Milling Machine

Product Description

X6325 X6325D X6330 X6330D Metal Universal Vertical Turret Milling Machine The main performance characteristics::
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline
etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries Specification:

MODEL	X6325	X6325D	X6330	X6330D
Table size	1270x254mm	1270x254mm	305×1370mm	305×1370mm
Table loading	280Kg	320kg	350Kg	350Kg
Long travel	780mm	800mm	800mm	800mm
Cross travel	420mm	420mm	420mm	420mm
Vertical travel	420mm	420mm	420mm	420mm
T-slot No. and size	3×16	3×16	3×16	3×16
Ram travel	470mm	470mm	470mm	470mm
Distance from spindle nose to table surface	0-405mm	0-405mm	0-405mm	0-405mm
Spindle hole taper	R8	ISO40	ISO40	ISO40
Sleeve Diameter	85mm	85mm	85mm	85mm
Spindle travel	127mm	130mm	127mm	127mm
Spindle speed	(standard): (shift grade) 50HZ: 66-4540 60HZ: 80-5440
Auto. quill feed	(three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
motor	2.25KW/3HP Milling head from Taiwan	3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan
Head swivel	90°	90°	90°	90°
Head tilting	45°	45°	45°	45°
Dimension of machine	1516×1550×2130	1516x1550x2160	1516×1550×2250	1516×1550×2500
G.W/set	1350Kg	1400kg	1450Kg	1500Kg
