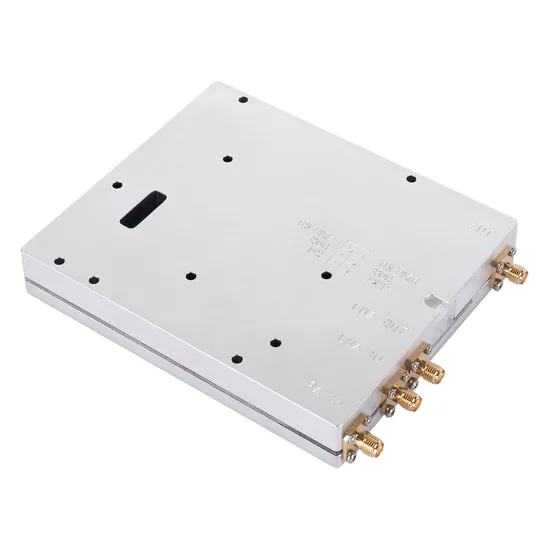

25W Tdd Dmr/P25 RF Power Amplifier Module - PA Module for Repeaters

Product Description

Ports of the PA module
A. POWER-6 Connector for Power Supply& Monitor,Pin definition:
PIN 1 -->LNA EN(NC)
PIN 1 -->PA EN(NC)
PIN 1 -->T/R
PIN 1 -->GND
PIN 1 -->LNA SW(NC)
PIN 1 -->+28V
B. RF Connector: MCX-KE
C. T/R Switching:The level is 3.3~5v, high-level transmit, low-level receive

Specification:

Items	Downlink	Uplink
Frequency rang(MHz)	Customized
Max Output Power	44±1dBm
Gain	≥35dB	≥10dB
Gain Adjustable rang	≤5dB
EVM	≤5%(r.m.s)
ACPR	≤-45dBc
In Band Ripple	≤3dB
Frequency Error	≤0.01ppm
VSWR	≤1.5
Noise Figure		≤3
Group delay time	≤1μs
Max. Input Power Without Damage	0dBm(CW)	-10dBm(CW)
Power Supply	+28V;≤1.0A
Operating Temperature	-40~+55ºC
Test Signal	LTE20MHz,64QAM,PAPR=9.7
