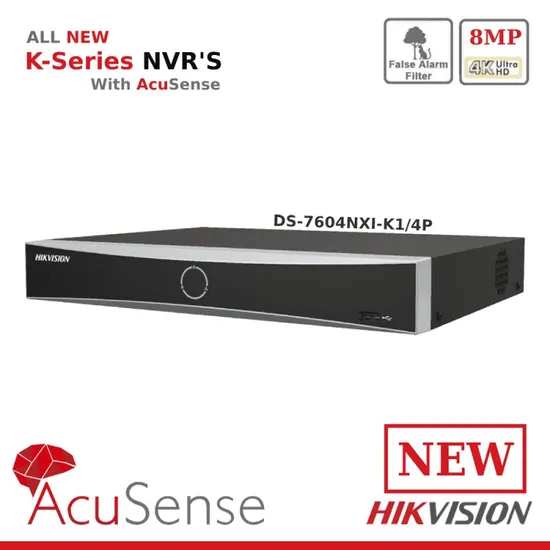

Acusense Ds Hikvision CCTV 4K DVR 4 Channel NVR Works for All 8MP Hikvision IP Security Camera

Product Description

Product Description4-ch 1U Series AcuSense 4K DVR - 4 channel NVR works for All 8MP HIKVISION IP Security Camera(DS-7604NXI-K1)Up to 4-ch IP camera inputsH.265+/H.265/H.264+/H.264 video formatsUp to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacityUp to 40 Mbps incoming bandwidthAdopt Hikvision Acusense technology to minimize manual effort and security costsDetailed Photos Video recorders and data analyzers
With built-in analytics, Hikvision's Network Video Recorders (NVRs) provide advanced artificial intelligence capabilities for any connected data stream, even those from conventional security cameras. Empowered by AI chips and high-precision algorithms, Hikvision NVRs combine high-efficiency video recording with abundant options for data analytics. These advanced NVRs bring powerful applications to a variety of users with diverse requirements.
All-around protection of video dataRest assured of Hikvision NVRs' high system stability and data availability with:
Data protection through Redundant Array of Independent Disks (RAID), Automatic Network Replenishment (ANR), N+1 or N+M hot spare, and cloud storageEnhanced cybersecurity with two-factor authentication and user access controlDual operating systems run on embedded Linux kernelExtended device life and data corruption prevention through hard-drive health monitoringEasier-than-ever data managementData management becomes centralized and easy with Hikvision NVRs serve as a management hub for valuable data from various edge devices including access control, alarm sensors, network, thermal, and solar-powered cameras, and more.
Management is simplified using:
A user-friendly interfaceFlexible access with PCs or mobile devicesQuick connection with front-end devices
Product ParametersSpecification

Intelligent Analytics
AI By Device	Facial recognition, perimeter protection, motion detection 2.0
AI By Camera	Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition
Facial Detection And Analytics	Face picture comparison, human face capture, face picture search
Face Attributes	N/A
Face Picture Library	Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Face Picture Comparison	2-ch
Facial Detection And Analytics Performance	1-ch, 4 MP;1-ch, 8 MP

Motion Detection 2.0
By Device	All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels

Perimeter Protection
By Device	1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels

Video And Audio
IP Video Input	4-ch
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
HDMI Output	1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI1/VGA simultaneous output
CVBS Output	N/A
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Decoding Format	H.265/H.265+/H.264+/H.264
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	4-ch
Decoding Capability	AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC

Network
Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection	128
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
API	ONVIF (profile S/G); SDK; ISAPI
Compatible Browser	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

PoE (DS-7604NXI-K1/4P)
Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 50 W
Standard	IEEE 802.3af/at

Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 10 TB capacity for each HDD
Alarm In/Out	4/1;N/A;N/A (4/1 is optional)
USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General
GUI Language	English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply	12 VDC, 1.5 A
Consumption	≤ 10 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
Weight	≤1 kg (without HDD, 2.2 lb.)

Certification
Obtained Certification	CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Packaging & Shipping

Shipping	DHL, Fedex, UPS, Sea shipping
Warranty	2 years
OEM services	Yes!!! you can OEM with your own logo
Technical support	Yes!!! we have technical team

Company ProfilePAIZE TECHNOLOGY LIMITED was founded in 2015, we have the professional sales and technical support team in Hangzhou. Since established, we are always focusing on the distribution of security products, and cooperate with the top3 manufacturer in security field. Our business covers many countries including Europe,
Africa,America, Asia, Australia, and so on.
The products we sell include DVRs, NVRs, IP cameras, HDCVI cameras, and so on. All the products we providing are original international versions and OEM orders are also welcome.
We will make great efforts to offer excellent pre-sales, sales, and after-sales service.
We adhere to the principle of "Customer Upmost, Service First" We are sincerely looking forward to your cooperation!
FAQQ: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website of Dahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are Dahua genuine products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.
