Highly Recommend HVAC Duct Production Line 4/Rectangular Tube Forming Machines Made in China

Product Description

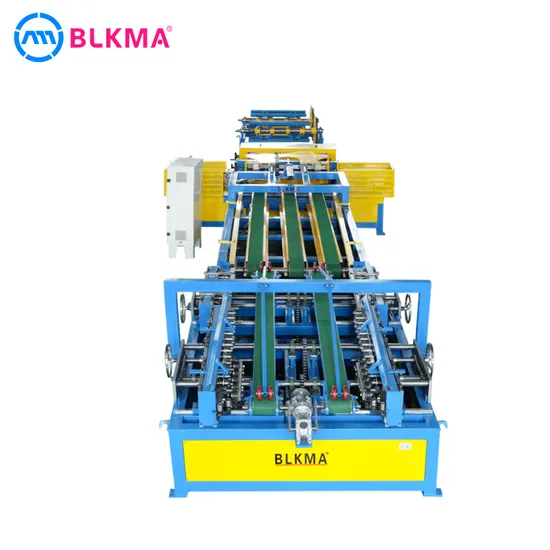

Air duct line 4 /Square duct making machine

YOUTUBE VIDEO

https://youtu.be/mginluS_bs0

Performance Features:
1. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
2. Under the material-saving mode of CNC system, machine can withdraw material automatically
after finishing tasks.
3. With production memory functions, the production orders can be tracked and checked.
Function:
It's mainly for uncoiling, leveling, beading, punching, locking, bilaterally angle steel or TDF flange forming.
ents.
Main Technical Parameters:

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Max weight of coil (T)	Dimension L*W*H (mm)	Power (kw)	Weight (T)
ADL-4-1300	0.5-1.2	1300	15	7	18000*3000*1450	25	9
ADL-4-1500	0.5-1.2	1500	15	7	18000*3200*1450	25	10

Working Flow:
Main import Configuration: 1. Cylinder imported from Germany Festo
2. Beijing Huade + hydraulic system from Taiwan
3. Taiwan Hiwin linear guideways
4. Schneider electrical system

Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. One mechanical arm clutching, locating and transferring platform
5. One displacement type locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One set of computer controlling system
Detailed images:
FAQ
1. Are you factory or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory
for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both
sides' discussion and agreement.
4. OEM is available?
Yes.
