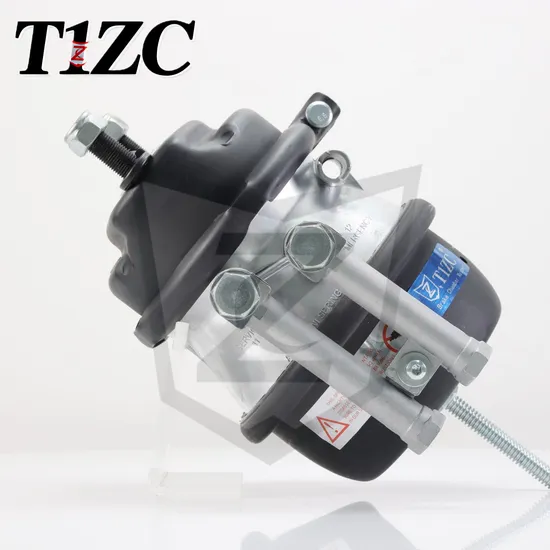

T1zc Quality Assurance T16/24 Dd H Tube Air Spring Truck Brake Systems Chamber Truck Diaphragm for Heavy Duty Trailer Bus
Basic Info.
Model NO.
T16/24
Type
Brake System
Material
Steel
Position
Chassis
Certification
ISO9001
Classification
Chamber
Drum Brakes Classification
Brake Chamber
Main Market
North America, Southeast Asia
Stroke
57mm
Bolt Center
120.7mm
Bolt Thread
M16*1.5
Port Thread
M16*1.5
Push Rod Length
15mm
OEM
Acceptable
Transport Package
Box or Pallets
Trademark
T1ZC
Origin
China
HS Code
8708309500
Production Capacity
1300pieces/Day
Product Description
Product Description
The braking chamber is a crucial component in the braking system of a vehicle, responsible for converting the driver's braking input into the necessary force to slow or stop the vehicle. It typically houses the brake master cylinder, which generates the hydraulic pressure that actuates the brakes at each wheel. This chamber is designed to be sturdy and durable, withstanding the high pressures and temperatures generated during braking. The layout and components within the braking chamber are carefully engineered to ensure optimal performance and safety. Regular maintenance and inspection of the braking chamber are essential to ensure the continued reliability and effectiveness of the braking system. Product Parameters
| Diaphragms -- General | |||||||
| Part No | Type | Alternative | Alternative | Alternative | A(mm) | B(mm) | C(mm) |
| TYE9.A | T9 | 8971204954 | 272489 | KY1505/1 | 128 | 79 | 31 |
| TYE9.B | 9L | 8017209 | B.74478 | --- | 128 | 71 | 30 |
| TYE12/16 | 12/16L | 8971219234 | --- | --- | 162 | 79 | 43 |
| TYE12S | 12 SS | KY1505/2 | 8017112 | A.75056.3 | 139 | 19 | 28 |
| TYE12 | T 12 | 8971205054 | 8017212 | B.7447.9 | 139 | 79 | 30 |
| TYE14S | 14 SS | 8971216104 | 8017114 | B.61290 | 147 | 7g | 32 |
| TYE14 | T 14 | 8971216154 | 8017214 | B.54871 | 147 | 79 | 41 |
| TYE16S | 16 SS | 8971205104 | 8017116 | A.75056.4 | 158 | 100 | 32 |
| TYE16 | T 16 | 8971205154 | 8017216 | B.56649 | 158 | 100 | 38 |
| TYE16L | 16 LS | 8971205164 | 8017316 | 1188264 | 158 | 100 | 47 |
| TYE20S | 20 SS | 8971205204 | 8017120 | A.75056.5 | 168 | 106 | 32 |
| TYE20 | T 20 | 8971205254 | 8017220 | B.58894 | 168 | 106 | 38 |
| TYE20L | T 20 L | 8971205264 | 8017320 | 1186260 | 168 | 106 | 47 |
| TYE24 | T 24 | 8971205354 | 8017241 | B.64322 | 179 | 115 | 39 |
| TYE24L | T 24 L | 8971205364 | 8017424 | 1186261 | 179 | 115 | 47 |
| TYE27 | T 27 | 8971205474 | 8017227 | 1190023 | 200 | 120 | 34 |
| TYE30 | T 30 | 8971205404 | 8017130 | A.75056.7 | 200 | 139 | 33 |
| TYE30L | T 30 L | 8971205464 | 8017430 | B.59171 | 200 | 139 | 48 |
| TYE36 | T 36 L | 8971205504 | 8017136 | 1185301 | 224 | 165 | 46 |
| Clamp Ring Sets c/w Nuts & Bolts | |||||
| Part No | Type | Image | |||
| TYCS16 | 16 | ||||
| TYCS20 | 20 | ||||
| TYCS24 | 24 | ||||
| TYCS30 | 30 | ||||
| Rubber Gaiters | |||||
| Part No | Application | Image | |||
| TYL03.1 | Disc Brake | ||||
| TYL03.2 | Cam Brake | ||||
| TYL03.3 | Disc Parking Actuators | ||||
| Push Rods--Cam Brake(16mm Thread) | ||||||
| Part No | Type | Image | ||||
| TYI.A12 | 12 | |||||
| TYI.A16 | 16 | |||||
| TYI.A20 | 20 | |||||
| TYI.A24 | 24 | |||||
| TYI.A30 | 30 | |||||
| Push Rods--Disc Brake | ||||||||
| Part No | Type | Image | ||||||
| TYI.B10 | 10 | |||||||
| TYI.B12 | 12 | |||||||
| TYI.B14 | 14 | |||||||
| TYI.B16 | 16 | |||||||
| TYI.B18 | 18 | |||||||
| TYI.B20 | 20 | |||||||
| TYI.B24 | 24 | |||||||
| TYI.B30 | 30 | |||||||
| Brake Chamber Return Spring | ||||||
| Part No | Type | Image | ||||
| TYS01 | Universal | |||||
| TYS01-5.1 | Tower spring | |||||
| TYS02-4 | Drum spring | |||||
| Yoke Assemblies | |||||||||||||||||
| Part No | Information | Image | |||||||||||||||
| TYF.04 | Long Version 16mm Thread 14mm Pin | ||||||||||||||||
| TYF.06 | 16mm Thread 16mm Pin | ||||||||||||||||
| TYF.02.B14 | 5/8'Thread 14mm Pin | ||||||||||||||||
| TYF.01.A1/2 | Short Version 16mm Thread 1/2' Pin | ||||||||||||||||
| TYF.01.A14 | Short Version 16mm Thread 14mm Pin | ||||||||||||||||
| TYF.02.A14 | ROR Disc Brake Version 16mm Thread 14mm Pin | ||||||||||||||||
| TYF.05.A14 | Deep Throat Version 16mm Thread 14mm Pin Alt:003033609 | ||||||||||||||||
| TYF.02.C1/2 | 5/8' UNF Thread 1/2' Pin Alt:228790 | ||||||||||||||||
| YUF.03 | ROLLER FORKS | ||||||||||||||||
| Adaptors | |||||||||||
| Part No | Information | Image | |||||||||
| TYD.03.A | Male-M16*1.5 Female-M22*1.5 VOSS | ||||||||||
| TYD.03.E | Male-M22*1.5(Std) Female-M22*1.5 VOSS | ||||||||||
| TYD.03.B | Male-M22*1.5 Female-M16*1.5 | ||||||||||
| TYD.03.F | Male-M16*1.5 Female-1/4 BSP | ||||||||||
| TYD.03.G | Male-1/4 BSP Female-M16*1.5 | ||||||||||
| TYD.03.H | Male-3/8 BSP Female-M16*1.5 | ||||||||||
| TYD.03.I | Male-M16*1.5 Female-3/8 BSP | ||||||||||
