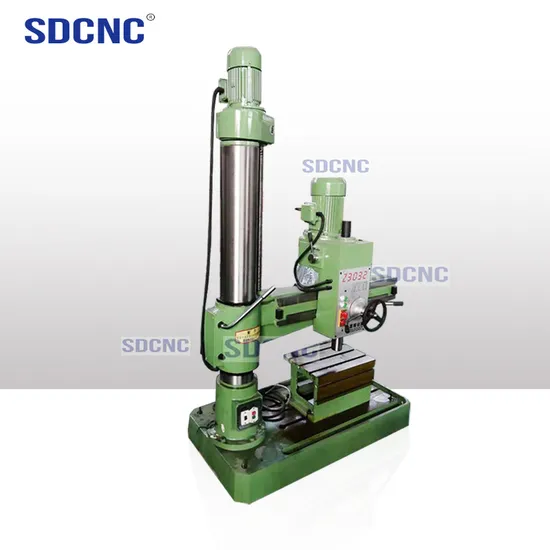

Z3032 CNC Manual Electric Lifting Gearbox Pump Motor Gear Core Construction Drilling Machine
| US$1,700.00-2,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3032
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Model Number
Z3032
Product Name
Radial Drilling Machine
Product Model
Z3032
Keyword
Z3032 Radial Drilling Machine
Transport Package
Wood Packaging
Specification
2500*1060*2800mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2500.00cm * 1060.00cm * 2800.00cm
Package Gross Weight
2500.000kg
Product Description
SPECIFICATIONS
The main performance characteristics: 1. The spindle box splint is an iron plug device, which can adjust the gap and has good drilling accuracy.
2. At the place where the spindle feeds into the worm gear, the oil can is convenient for lubrication.
3. The rocker rail is protected by manganese steel belts, and the real name is used for long-lasting and no wear.
4. The base and worktable are finely ground and processed with aging treatment, which is firm and stable.
5. Spindle drilling three-level speed automatic feed; the hand wheel is a smooth bakelite hand wheel, comfortable to grasp,
flexible left and right movement.
| Datas | Z3032×10 |
| Max. Drilling diameter mm | Steel Φ32 iron Φ32 |
| tensile strength Mpa | 500-600 |
| Column diameter mm | 200 |
| Distance between spindle centerline and column mm | 200-910 |
| Horizontal moving distance of spindle box mm | 710 |
| Distance from Spindle nose to base surface mm | 330-1060 |
| Rocker arm lift distance mm | 730 |
| Spindle travel mm | 120 |
| Spindle taper | Morse 4 |
| Spindle speeds r/min | 108 162 262 398 665 1000 |
| Spindle feeder mm/r | 0.10 0.16 0.25 |
| maximum feed resistance of Spindle allows N | 5300 |
| Rocker arm lifting speed m/min | 1.21 |
| Swing angle of rocker arm (°) | + 180 |
| Spindle motor power KW | 1.5/2.2 |
| Liftting motor KW | 0.55 |
| Coolant power KW | 0.04 |
| Net weight kg | 1080 |
| Machine size mm | 1400×660×2060 |
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it
out.
