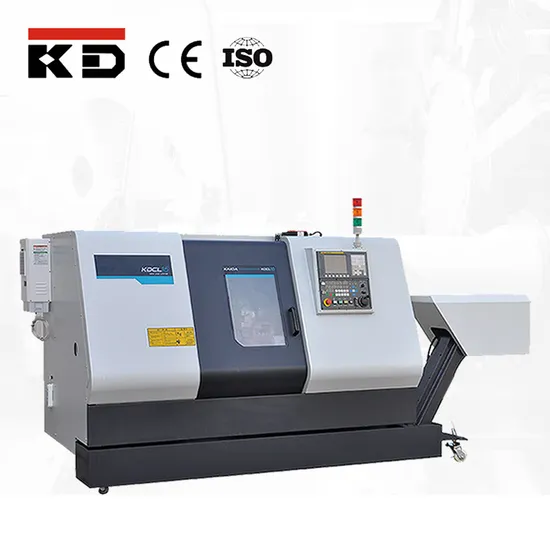

Kdcl-15h High Precision CNC Lathe Machine with CE
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCL-15H
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
360mm
Max Turning Diameter for Disc Parts
250mm
Max Turning Diameter for Axle Parts
140mm
Max Turning Length
280mm
Spindle Bore
38/56mm
Spindle Nose
A2-5
Spindle Speed
4000/6000rpm
Tool Turret
8-Station German Sauter Live Turret
Live Turret Motor
2.2/3.7kw
Tool Shank
20X20mm
Boring Tool Seat
32mm
Tapper of Tailstock Sleeve
Mt3
Main Motor
7.5/11kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
KDCL-15H High Precision CNC Lathe Machine with CEFEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
| MODELS | KDCL-15H |
| CAPACITY | |
| Max.swing over bed | Ф360mm |
| Max.cutting diameter for disc parts | Ф250mm |
| Max.cutting diameter for axle parts | Ф140mm |
| Max.length of workpiece | 280mm |
| TRAVEL | |
| X travel | 140mm |
| Z travel | 320mm |
| Guide ways X&Z | Precision linear ball rail |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max.speed of spindle | 6000rpm(sleeve spindle) |
| Spindle nose | A2-5 |
| Diameter of spindle thru hole | Ф56mm |
| Taper bore of spindle | M.T.No.5 |
| Hydraulic chuck | 6″ |
| Type of spindle motor | Servo motor |
| Spindle motor power | 7.5/11kw |
| TOOL POST | |
| Tool number | 8 ways |
| Live tool servo motor power | 2.2/3.7kw |
| Max speed of live tool | 6000rpm |
| Outside diameter of cutting tool shank | 20×20mm |
| Inner dia.of cutting tool shank | Ф32mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф80mm |
| Tailstock sleeve travel | 90mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min.input | 0.001mm |
| Bed structure | 45° slant bed |
| Overall dimensions(L×W×H) | 2700×1460×1680mm |
| Net weight | 3000kg |
PRODUCT CONFIGURATION
