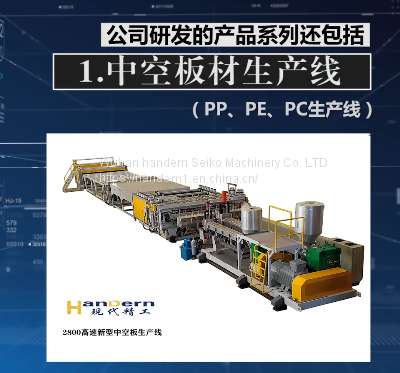

PP/PE/PC Hollow Plate Extrusion Production Line hollow profile sheet extrusion machine

Product Details

Product Description

Product Description
Model NO.
2600
Warranty
1 Year
Usage
Hollow Board
Packaging Material
Plastic
Packaging
Cartons
Driven Type
Electric
Type
Explosive Packaging Production Line
Function
Transport Packaging
Packaging Technology
Mildew Proof Packaging
Application
Drinks, Dairy Products, Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Hair Care Products
Soft and Hardness
Semi-Rigid Package
Circulation Function
Outer Packing
Frequency of Use
Several Packaging
Mode of Operation
Special Product Packaging
Trademark
handern
Transport Package
Packed in Wooden Cases
Specification
24*4*3miter
Origin
Wuhan China
Product Description
PP/PE/PC hollow profile sheet extrusion machine
With 600 lines all around the world
Normal type extrusion line
High speed extrusion line
S-type hollow profile sheet extrusion line
X-type hollow profile sheet extrusion line
multi layer co-extrusion hollow board production line
V-type hollow profile sheet extrusion line
PC sunshine sheet extrusion line

PP/PE/PC hollow profile sheet extrusion machine data
Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
1400	1250	2-6 6-12 12-18	280/280/350
1800	1650	2-6 6-12 12-18	320/350/420
2300	2150	2-6 6-12	350/350
2400	2200	2-6 6-12	450
2600	2450	2-6 6-12	480
2800	2600	2-6 6-12	500
PC hollow profile sunshine sheet producing machine data
Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
2300	2100	4-6 8-12	300-400

The configuration of machines can be CUSTOMIZED according to your needs!

PP plastic polypropylene hollow sheet machine	Unit
Single Screw Extruder	one set
Die	one set
Hydraulic Pressure Screen Changer	one set
Vaccum Calibration Table	one set
First Haul-off	one set
Oven	one set
Cooling Device	one set
Second haul-off	one set
Cutting device	one set
Electrical Control Cabinet	one set
Stacker	one set
Screw Loader	one set

Extruder:special designed screw,advanced temperature control system,eunsuring stable extrusion and high output.
Die:super quality alloy lips and adjustable restrictor bars,providing even pressure.
Vacuum calibrator:heat-convection system array interleaved,guarantees high precise of calibration. The vacuum system consists of two independent subsystems, and is equipped with many closed loop vacuum lines.
Electrical control system:adopting microprocessor unit(PLC) to control precise parameters and be optimized with the operation charateristics.

Hollow profile sheet main Applications:
Industrial packaging	electronic circulating box, auto part circulating box, logistics circulating box etc
delivery packaging	PP turnover container box, PP corrugated packaging box, PP turnover packaging box,Plastic fire-retarding packaging box for food, electrionic or delivery industry.
Advertisement	displayed card,billboard,light box etc.
Home	temporary partition,wall backplate,ceiling board etc.
Other applications	backplate of washing machine,cars,and water heater,baseplate for delivery etc.

Paper box for packaging
Bill board, displayed card
Hollow profile sunshine sheet as ceiling board
Baseplate for delivery
1. Good mechanic property
The special structure from plastic hollow board provides good reflexibility, anti-shock, high anti-pressure strength, higher hardness, good bent feature and shock buffer.
2. Light weight and material reduction
Under the same effect, it can make plastic hollow board with material consumption reduction, costing lower and light weight.
3. Heat perservation and sound proof
Hollow board's hollow structure make it's heat and sound transfering effect abviously lower than solid board, reaching good heat perservation and soundproof effect.
4. Anti-static, electricity conduction and fire resistant
Adopting changed property, mixed, surface spread, etc, makes plastic hollow board with the property of anti-static electricity,electricity conduction and fire resistant.
5. Stable chemical property
Plastic hollow board can be water proof, damp proof, anti-erosion, compared with board free of fumigation, it has obvious advantage.
6. Smoothy surface, good looking apperance and complete color variety
With special forming manufacturing process and adjusting color-master's material, it can reach random color, and the surface is smoothy, printing is easy.
7. Good enviroment-protection effect
Plastic hollow board has the features of non-toxic, free of polution, easy to handle, so it avoids polution, also can be re-used or being done to other plastic finished product
Seaworthy packing material such as:Wooden case and PE film,etc for PP plastic polypropylene hollow sheet machine package.
As a manufacturing company, our services are technology leading innovative services, customer-centric technology and service integration of service innovation, which can be a good combination of changes in the industry environment to bring sustainable development advantages to manufacturing companies. Our company provide comprehensive and detailed phased and meticulous service and complete service system that includes pre-sales consultation, in-sale service and after-sales service.
Wuhan Handern Machinery Company, Top 10 Plastic Machinery Supplier! Plastic sheet extrusion machine Cast Film extrusion machine.
