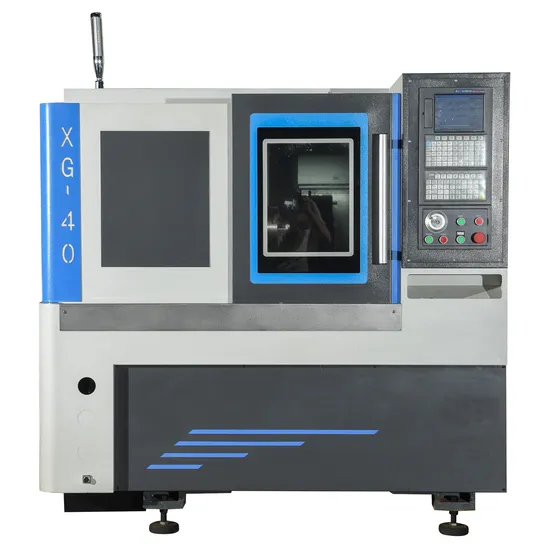

Xg40 Slant Bed Linear Rail High Precision High Spindle Speed with 8 Station Turret CNC Lathe Machine

Product Description

XG40 Slant Bed Linear Rail CNC Lathe
GSK brand controller with english/russian/spanish language
optional syntec fanuc ,siemens brand
machine standard match hydraulic collet ,optional 6inch hydraulic three jaw chuck
choose install gang tool post or 8station hydraulic servo turret,
optional power head
The main features
1.The 30 degree body design,made of high quality resin sand,two bed frame structure aging treatment,high rigidity and precision stability.
2.The screw pre-tension structure design eliminates thermal deformation and can ensure high-precision processing.
3.The import precision ball screw and linear guide rail, can realize the u level maching.
4.The high precision spindle unit,hydraulic clamping system to ensure the smooth operation of high-speed spindle.
5.It adopts hydraulic servo turret configuration, with nearby tool change function, and the overall efficiency is high.
6.The movable built-in hydraulic tailstock realizes programmable control and high degree of automation.
7.Side and rear bidirectional chip removal structure, convenient chip removal and suitable for automatic transformation.
Main specification:

Item		Technical indicators	unit	XG40
capacity		max.swing over bed	mm	ф400
		max.swing over slide	mm	ф160
		max.length of workpiece	mm	300
		bar diameter	mm	ф40/45
spindle		max spindle speed	rpm	5000
		dia of spindle bore	mm	ф49/56
		spindle taper	ASA	A2-5
		main motor power	kw	3.7/5.5kw servo
rapid speed		x axis rapid speed	m/min	25
		z axis rapid speed	m/min	25
axis stroke		x axis limit troke	mm	320
		z axis limit troke	mm	320
accuracy		X,Z axis position accuracy	mm	±0.005
		X,Z axis repeat position accuracy	mm	±0.003
clamping	standard	spring collet	mm	M48*1.5
	optional	hydraulic chuck	inch	6inch
tool	standard	gang tool post size	mm	20*20
		tapping boring tool size	mm	ф20/ф25
	optional	turret model,no		8-station hydraulic servo tower
other		Chip removal direction		back row
		machine weight	kg	1800
		diemension(L*W*H)	mm	1850*1400*1650mm
