Tubular Bowl Centrifuge for 2 Phase Clarification
Basic Info.
Model NO.
LHZ220
Type
Centrifuge
Object
Cosmetic
Separation Mode
Sedimentation Type
Operating Type
Intermittent Type
Installation
Vertical
Centrifuge Type
Tube Centrifuge
Condition
New
Centrifuge
Tubular Centrifuge
Transport Package
Wooden
Specification
1800*2000*2000
Trademark
huading
Origin
China
HS Code
8421
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
1800.00cm * 1200.00cm * 1800.00cm
Package Gross Weight
1500.000kg
Product Description

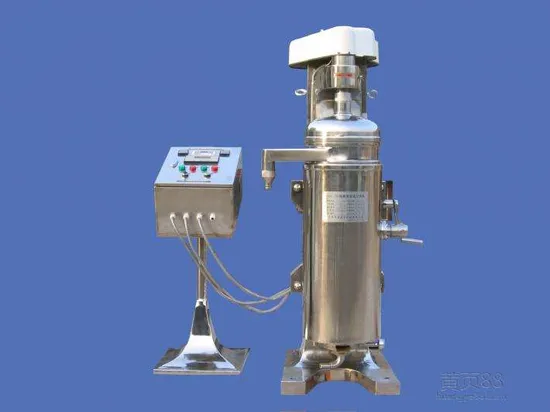

GQ Tubular Centrifuge
High speed separation & clarification. GQ series Tubular Centrifuge from Huading Separator is a high speed solid bowl type machine for continuous removing solids from liquid with density difference.
Tubular centrifuge is an ideal instrument in biology, traditional medicine preparation, health food, chemistry for liquid-solids separation. It is especially designed for separation and clarification of process liquid with low density difference, small granularity, low solid content, strong medium corrosion.
| Project model | GQ | GQ105 | GQ125 | GQ150 | |
| Turn Drum | Diameter(mm) | 75 | 105 | 125 | 142 |
| Rotational speed (r/m) | 19000 | 16300 | 15000 | 13400 | |
| Volume(L) | 2.2 | 6 | 8 | 10 | |
| Separation factor | 15200 | 15620 | 15700 | 14300 | |
| Feed nozzle diameter(mm) | 3,5,7 | 4,6,8 | 4,6,8 | 4,6,8 | |
| Material import pressure(Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | |
| Water passing capacity(L/H) | 600 | 1200 | 1500 | 2500 | |
| Motor power(KW) | 1.5 | 2.2 | 3 | 3 | |
| Machine weight(KG) | 260 | 500 | 530 | 550 | |
| Dimensions(mm×mm×mm) | 450×760×1120 | 600×900×1600 | 600×900×1600 | 600×900×1600 | |
