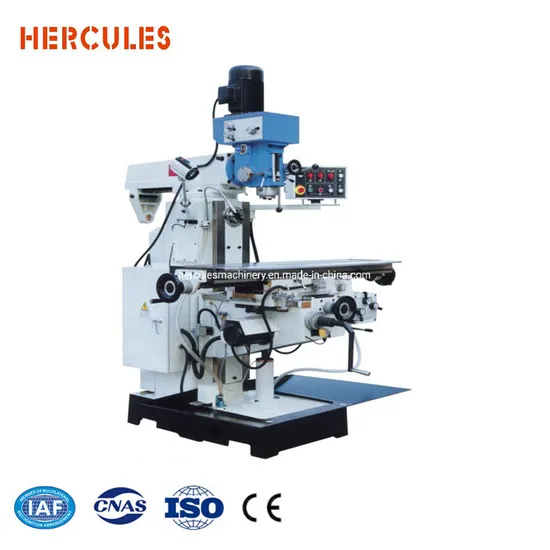

ZX6350CW Fresadora Taladro Vertical Universal Milling Drilling Cutting machine
| US$3,300.00-7,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX6350CW
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1120(1200)*280
X Axis
Dovetail
Y Axis
Square
Z Axis
Square
Motor
2.2kw(V) 2.2kw(H)
Spindle
MT4(V) ISO40(H)
Transport Package
Pallet
Specification
1290*1220*2100
Trademark
DURAMILLS or OEM
Origin
China
HS Code
8459699000
Production Capacity
20000 Sets/Year
Product Description
| Model | ZX6350CW |
| Spindle taper | MT4(V) ISO40(H) |
| Distance form spindle to table | 300mm |
| Distance from horizontal to table | 110-410mm |
| Distance from spindle to column | 200-700mm |
| Spindle speed | (8 step)114-1750rpm(V) (6 step)40-1300rpm(H) |
| Spindle travel | 120mm |
| Max. drillingcapacity of auto-feeding | M16 |
| Head movement | ±45° |
| Table size | 1120(1200)x280 mm |
| Max. weight of workpiece | 200kg |
| Table travel(Horizontal/Cross/Vertical) | 600/260/300 mm |
| T-slot Number/Width/Distance | 3/14mm/60mm |
| Milling head moving(Vertical) | Dovetail |
| Cross slide way | Dovetail |
| Longiudinal slide way | Dovetail |
| Horse power for main motor | 2.2kw(V) 2.2kw(H) |
| X axis driving motor | 370W |
| Coolant pump power | - |
| Overall dimension | 1660x1340x2130mm |
| Packing size | 1620x1400x2220mm |
| N.W/G.W | 1300/1380kg |
| Hercules Machinery Equipment Ltd. | |
