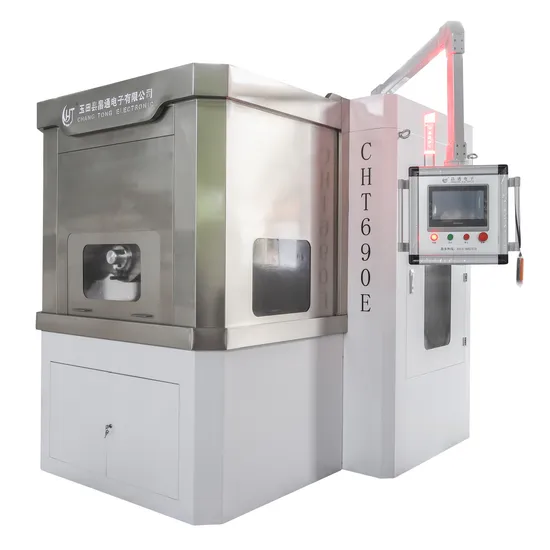

Advanced Semi-Conductor Bar Cutting Machine for Solar Battery Production/Mdiamond Wire Saw Cutting/Stone Cutting/Block Cutting/Wire Sawing/Wire Strip

Product Description

Equipment Use: Designed with precision to enhance the cutting efficiency for discerning customers, this model boasts a robust roller length of 690mm. The expansive table size of 170/145mm*690mm*160mm*2 accommodates a broad range of thicknesses from a delicate 0.3mm to a substantial 65mm, ensuring versatility in product cutting.
CHTXQ-690F Double Plate Multi-Wire Cutting Machine Product Features
1. Benefit from the innovative design of four independently-driven motors powering each roller. This transforms the rollers into primary drive shafts, significantly reducing steel line wear and enhancing roller longevity. Precision-engineered roller bracket mounting holes ensure perfect alignment, meeting stringent spindle installation coaxial standards.
2. With the option to equip an intuitive LED display, monitoring cutting data has never been so straightforward and visually clear.
3. Experience unparalleled convenience with a table that allows materials to be cut from the bottom up, simplifying loading and unloading operations.
4. Choose between our high-speed and standard models. The high-speed variant boasts faster operation, elevated line speed, and superior cutting efficiency, allowing for the use of a thinner diamond line when cutting identical materials.
5. Featuring lateral movement capabilities, the table can seamlessly glide back and forth, facilitating the cutting of tiles and enabling a single-line cutting functionality.
6. A generously-sized loading area of 170/145mm*690mm*160mm*2 enhances productivity and efficiency in cutting operations.
7. With spindle accuracy maintained at ≤0.01mm, our patented dust structure (Patent No. ZL201320681902.7) ensures stable operation and effortless disassembly.
8. Simplify your operations with user-friendly features like an automatic lifting shield and fully expandable workbench, making loading, unloading, and rolling a breeze.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This sophisticated double-station multi-wire cutting machine excels in diamond wire processing. It processes two plate materials simultaneously with a generous roller length of 690mm and a cutting surface of 220mm*690mm*160mm*2. Featuring a rotary tool holder function, it accommodates blade thicknesses from 0.5mm to 65mm, offering both single and multi-line cutting capabilities for hard and brittle materials in batch straight sheet processing.
Discover a new level of precision with this multi-line cutting machine, designed for diamond line processing. With a roller length of 570mm, it has a maximum cutting capacity of 220mm*570mm*160mm, featuring a rotary tool holder that accommodates a thickness range from 0.3mm to 65mm. Ideal for slicing hard and brittle materials in batch straight sheet processing.
This compact multi-line cutting machine, available in single and double station models, is tailored for small batch straight sheet processing of hard and brittle materials. Effortless product specification changes and a cutting thickness range of 0.5mm to 30mm make it versatile, offering both single and multi-line cutting functionalities.

>Stable Wire Web Control
The precise cone-positioned structure of the rollers and wire spools ensures superior accuracy and rigidity, minimizing wire web vibrations.
>Optimized Pulley System
Our advanced 8-pulley design significantly diminishes diamond wire torsion, tension fluctuations, and reduces the wire breakage rate, enhancing overall durability.
>Easy Wire Winding
The wire pay-off wheel integrates a standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding and simplifying wire management.
>Safety Guarantee
An electrically-operated main door features an integrated safety device, ensuring secure and safe operations.
>Wire Break Memory System.
>Easy Operation
Enjoy effortless operation and maintenance with a cutting room accessible from three sides, designed for ultimate convenience and efficiency.
