Product Description

Perfect Laser-3d Vertical Wall/Glass/Metal/Wood/Paper/Ceramic Mural Art Direct Inkjet Printer Painter Spraying Printing Painting Machine Price
(Model:PE-S80)
Product Description

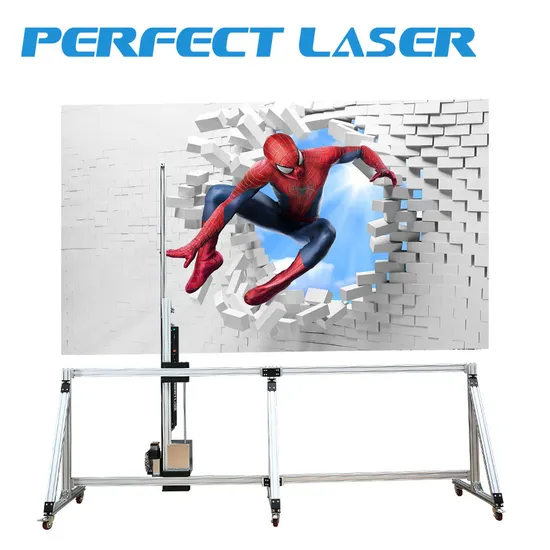

Perfect Laser is a professional manufacturer engaged in the research, development and production of wall printing machine. In order to meet the different needs of different customers, Perfect Laser develops new generation industrial intelligent wall printing machine PE-S80.The design of industrial 3d vertical wall printer nozzle is different from that of conventional wall printing machine. It has a higher printing speed, can satisfy large-scale work for a long time, and is more stable in performance. And the standard track of the wall printing machine can be up to 6M, more widely used.
Application
The wall printing machine is widely applied in interior and exterior wall putty walls, latex paint walls, white, imitation porcelain walls, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.
Product Features
Perfect Laser is a professional manufacturer engaged in the research, development and production of wall printing machine. In order to meet the different needs of different customers, Perfect Laser develops new generation industrial intelligent wall printing machine PE-S80.
The design of industrial 3d vertical wall printer nozzle is different from that of conventional wall printing machine. It has a higher printing speed, can satisfy large-scale work for a long time, and is more stable in performance. And the standard track of the wall printing machine can be up to 6M, more widely used.

Product Parameters

	PE-S70	PE-S80
Printing Head	Japan imported industrial grade printing head
	1 pc	2 pcs
Painting Speed	32m2/h	64m2/h
Main-board Configuration	6-core CPU, 2GB DDR memory	8-core CPU, 4GB DDR memory
UPS Battery Life	About 10 hours	About 12 hours
Pad SizeModel	10.1 inch	11.6 inch
Rail Size(L×H)	4500mm×2640mm
Host Size (L×W×H)	400mm×320mm×2500mm
Sensor	Double
X Axis Effective Stroke	2000mm
Y Axis Effective Stroke	Unlimited
Z Axis Effective Stroke	150mm
Z Axis Guide	170mm
Z Axis Automatic	Have
Ink Consumption Per Square	6-10ML
Nozzle Protective Device	Have
Spirit Level	Have
Automatic White Jump	Have
Nozzle Cleaning	One Key Automatic
Painting Accuracy	9600DPI
Painting Direction	Vertical
Painted Mode	two-way
Ink Tank Capacity	400ML=100ML×4
Spray Distance	0.5-2.0cm
Ink Supply Method	Automatic ink supply under negative pressure
Data Transmission Method	USB2.0/3.0
Certification	CE/GB18582-2001/GBT9756-2001
Power Supply	AC110V (90-132V)/AC220V (180-264V) , 47-63HZ
Power Consumption	No load:20W, Generally:75W, MAX: 250W
Noise	Standby <20dBA, Drawing <50dBA
Working Temperature	-10°C-60°C (14°F-140°F) 10%-80% relative humidity, non-condensing
Storage Temperature	-30°C-60°C (-22°F-140°F) 10%-80% relative humidity, non-condensing
Language	Chinese and English (Customized)
Total Body Weight	30 kgs	32 kgs
Total Track Weight	26.5 kgs	38 kgs
Training	VCD training, Engineer overseas training is available (charged additionally)
Guarantee	12 months

Machine Details

Recommended by seller

Packaging & Shipping
Our Service: 1:Free Training by VCD: We will supply the machine with , and in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
2:Free Training in Perfect Laser's Factory: You can sent operator to Perfect Laser factory for free training. Perfect Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time: 1-3 days (Recommend)
3:Our engineer can do a door-to-door instruction training service at your local site if you need.
Quality Guarantee & After-Sales Services:
The guarantee period of quality shall be 36 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid. Company Profile
