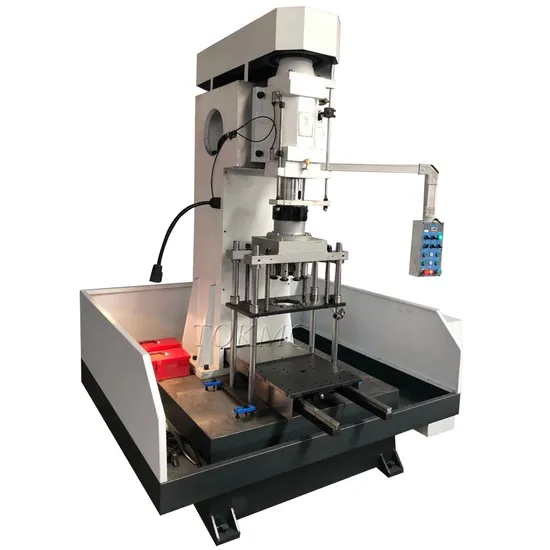

Bore Hole Drilling Machine Automatic CNC Drilling Machine
| US$13,970.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZA80
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE
Condition
New
Max.Drilling Diameter
80mm
Spindle Taper
Mt6
Spindle Travel
260mm
Spindle Motor
11 Kw
Control
PLC Auto Drilling Machine
Transport Package
1900X2100X2600 mm
Specification
3 tons
Trademark
TOKMC
Origin
China
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description
CNC auto drilling machine for drum hub| Item | ZA50 | ZA80 |
| Effective table size | 700x500 | 800mm*1100mm |
| Diameter of vertical column | Φ160 | Rectangular 400*500 |
| Spindle diameter | Φ110 | Φ160 |
| Spindle taper | MT5 | MT6 |
| Distance from spindle center to table surface | 300mm-850mm | Customer |
| Spindle travel | 230mm | 260mm |
| Spindle speed | Fixed speed Optional :variable | Fixed speed Optional :variable |
| Spindle motor | 5.5KW | 11KW |
| Max.drilling diameter | Φ50 | Φ80 |
| Weight | 1 TON | 1.8 TON |
| PLC | CHINA | CHINA |
Main parts list
| Name | Brand | Origin |
| Spindle motor | HQF | Taiwan |
| Lubrication pump motor | GEYAO | Taiwan |
| Lubrication pump | LS | Taiwan |
| Hydraulic valve | YOUYAN | Japan |
| Fluent valve | HDX | Taiwan |
| Frequency control | XINJIE | China |
| Switch for travel | TEND | Taiwan |
| Button | KNDELE | China |
| PLC Brand | XINJIE | China |
| Bearing | NSK | Japan |
| Electrical parts | Schneider | France |
