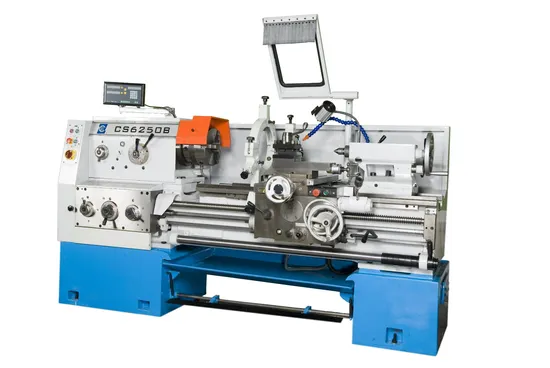

Lathe Machine Torno Big Bore Horizontal Lathe Machine (CS6250B) Torno
| US$6,570.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6250B
Type
Horizontal Lathe
Processing Accessory
Metal Parts
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Swing Over Bed
5010mm
Max. Swing Over Carriage
300mm
Width of Bed
400mm
Section of Turning Tool
25mm X 25mm
Spindle Hole
50/80/105mm
Spindle Taper
Mt6
Max. Tailstock Spindle Travel
150mm
Tailstock Spindle Diameter
75mm
Main Motor
7.5kw (10HP)
Dimension(L*W*H)
3700*1140*1750mm
Transport Package
Wooden Case with Plastic Cover Inside
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shangdong, China
HS Code
84589900
Production Capacity
200sets / Month
Product Description
Product DescriptionProduct Parameters
| SPECIFICATIONS | UNIT | CS6250B | |
| Capacity | Max. swing dia. over bed | mm | 500 |
| Max. swing dia.in gap | mm | 710 | |
| Max. swing dia. over slides | mm | 300 | |
| Max. workpiece length | mm | 1000/1500/2000/3000 | |
| Bed width | mm | 400 | |
| Spindle | Spindle bore diameter | mm | 82 |
| Type of spindle nose | no | ISO 702/II NO.8 com-lock type | |
| Spindle speed | rpm | 24 steps 9-1600 | |
| Spindle motor power | KW | 7.5 | |
| Tailstock | Diameter of quill | mm | 75 |
| Max. travel of quill | mm | 150 | |
| Taper of quill (Morse) | MT | 5 | |
| Turret | Tool O.D. size | mm | 25X25 |
| Feed | Max. X travel | mm | 145 |
| Max. Z travel | mm | 320 | |
| X feed range | mm/r | 93 kinds 0.028-6.43 | |
| Z feed range | mm/r | 93 kinds 0.012-2.73 | |
| Metric threads | mm | 48 kinds 0.5-224 | |
| Inch threads | t.p.i | 48 kinds 72-1/4 | |
| Module threads | πmm | 42 kinds 0.5-112 | |
| Diametricpitch threads | t.p.i.π | 42 kinds 56-1/4 | |
| Others | Length | mm | 2632/3132/3632/4632 |
| Width | mm | 975 | |
| Height | mm | 1270 | |
| Weight | kg | 2100/2300/2500/2900 | |
Standard accessories : 3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Chuck guard
Tool post guard
Some tools
Optional accessories : Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
