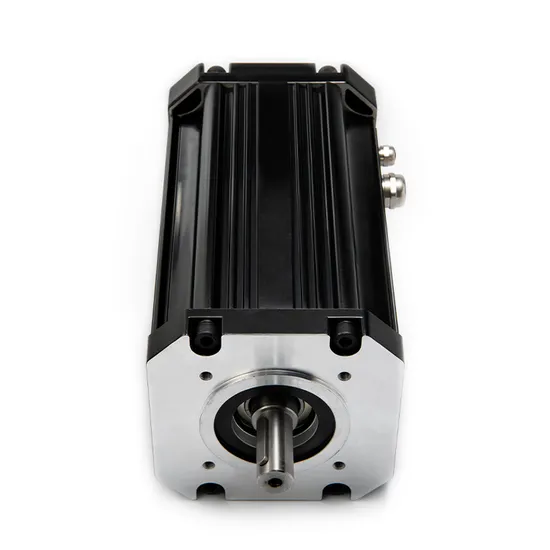

High Precision 50W 100W 150W 200W 300W 400W 24V 48V BLDC Motor
Basic Info.
Model NO.
GSBLD57 series
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
2
Structure and Working Principle
Brushless
Type
ZSN
Certification
CE
Brand
GS
All Technical Data
Can Be Customized
Internal Drive
Yes
Motor Speed
3000-6000rpm
Rated Voltage
24VDC, 48VDC
Warranty
1 Year
Insulation Class
Class B
Transport Package
Carton and Pallet
Specification
50-400W
Trademark
GS
Origin
China
HS Code
85013100
Production Capacity
30000
Product Description
High Precision 50W 100W 150W 200W 300W 400W 24V 48V BLDC MotorGeneral Parameters
| Projects | Specifications |
| Winding Type | Star |
| Hall Effect Angle | 120° electrical angle |
| Shaft Axial Play | 0.025mm |
| Ambient Temperature | 0~+50ºC |
| Ambient Humidity | <80% |
| Max. Radial Force | 75N@20mm from the flange |
| Max. Axial Force | 20N |
| Insulation Class | Class B |
| Dielectric Strength | one minute@500VAC |
| Insulation Resistance | 100MΩMin.@500VDC |
| Model | Rated voltage VDC | Rated torque N.m | Rated speed rpm | Rated current A | Rated power W | Peak torque N.m | Motor length mm | Weight kg |
| GSBLD57S50D24 | 24 | 0.16 | 3000 | 2.8 | 50 | 0.48 | 55 | 0.46 |
| GSBLD57S100D48 | 48 | 0.16 | 6000 | 2.8 | 100 | 0.48 | 55 | 0.46 |
| GSBLD57S100D24 | 24 | 0.32 | 3000 | 5.6 | 100 | 0.96 | 75 | 0.75 |
| GSBLD57S200D48 | 48 | 0.32 | 6000 | 5.6 | 200 | 0.96 | 75 | 0.75 |
| GSBLD57S150D24 | 24 | 0.48 | 3000 | 8.4 | 150 | 1.44 | 95 | 1.00 |
| GSBLD57S300D48 | 48 | 0.48 | 6000 | 8.4 | 300 | 1.44 | 95 | 1.00 |
| GSBLD57S200D24 | 24 | 0.64 | 3000 | 11.2 | 200 | 1.92 | 115 | 1.20 |
| GSBLD57S400D48 | 48 | 0.64 | 6000 | 11.2 | 400 | 1.92 | 115 | 1.20 |
Note:
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.
FAQ
1 Q: What's your MOQ?
A: 1unit is ok for different types.
2 Q: What about your warranty?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms ?
A: TT, western union and paypal. 100% payment in advanced for orders less $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing ?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet
6 Q: What information should be given, if I buy from you ?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the order?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
Warmly welcome your inquiries !
