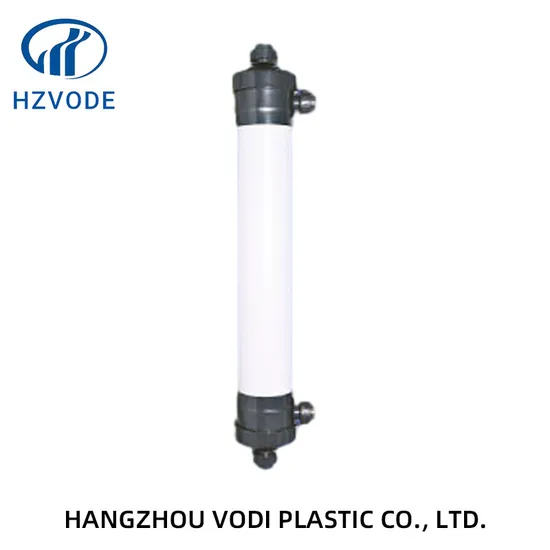

UF Membrane Housing for Ultrafiltration Membrane in 200mm Size by Hzvode

Product Description

Product Parameters
Hangzhou VODE Plastic Co., Ltd., located in Yuhang district ,Hangzhou city , Zhejiang province, China, was founded in 2007. It is a well-known manufacturer specialized in high-tech, high capability, and high reliability UPVC,CPVC piping system and Ultra filtration Membrane housings in China .
After fifteen years of development and innovation, the scale of factory continues to grow, new big factory with 40000 square meters were built and finished in 2021, production capacity and technical strength have been greatly improved right now. At present, the company introduces automatic intelligent production equipment. There are more than 100 sets of automatic production equipment in workshops.
HZVODE will continue to concentrate on making high-tech, high capability, and high reliability products for customers. We insist that development market with perfect products, excellence quality and reliable reputation, HZVODE will have a broader and more prosperous future.
Product Description

Type Specification	Φd	ΦD	L1	L2	H	Φd1	Remark
2"-A	50	85	90	72	56	12	hose connector
4"-A	90	110	115	101	110	32	Enter and exit the water outlet by order
5"-A	140	160	165	140	170	32/40	Enter and exit the water outlet by order
6"-A	160	195	207	183	164	40	Enter and exit the water outlet by order
6"-B	160	195	176	112	158	40	Enter and exit the water outlet by order
6"-C	160	220	274	214	170	40/50	Enter and exit the water outlet by order
8"-A-1	200	240	243	208	187	50	Enter and exit the water outlet by order
8"-A-2	200	230	243	208	187	50	Enter and exit the water outlet by order
8"-A-3	200	245	210	170	150	60	Copy forest inlet and outlet
8"-B	200	235	175	73	158	50	Copy the forest, enter and exit the water outlet by command
9"-B-1	225	290	173	73	172	50	Copy the forest, enter and exit the water outlet by command
9"-B-2	225	251	177	67	160.5	60	Copy forest inlet and outlet
10"-B	250	290	173	73	172	50	Copy the forest, enter and exit the water outlet by command
11"-A	315	350	208	263	224	75	Copy forest inlet and outlet
Note: Can be customized according to customer requirements

General Information:
1. Raw material: UPVC,CPVC,ABS
2 .Size: 2",4",5",6",8",9",10" and 12"
3 .Usage:Ultra Filtration
4. Pipe Length: Customized.
5. Models: OEM or ODM
Ultra filtration is a separating technology by using membrane, which is used for separating the solutions containing useful and non-useful admixtures. HZVODE is the biggest manufacturer providing Ultra filtration membrane shells in China, various of modules are available in HZVODE. Sales marketing shares in China we accounted for about 80%. The materials of Ultra Filtration membrane housings have UPVC, ABS, CPVC, and the sizes have 50mm,90mm,140mm,160,165mm,180mm,200mm,216mm,219mm,225mm,250mm,273mm,315mm,etc. OEM or ODM are also welcomed to develop together.
Complete ranges of fittings and pipes with high quality can be provided by HZVODE. The materials are UPVC,CPVC,as well as Transparent UPVC. Important certificates and identifications was acquired including the authentication certificate of quality management system - ISO9001 and the approval of sanitary license .
Features of products:
Light weight Corrosion resistance Small friction Aging resistance High flame retardant High strength Easy installation Advantages: The specific gravity is only one sixth of that of cast iron pipe, convenient installation and transportation, saving time and labor cost. Having good acid resistance, alkali resistance and electrochemical corrosion resistance. Inner wall is smooth, small flow-resistance, anti-fouling. Good chemical stability, and the normal service life can reach about 50 years. The flame can extinguish after leaving the fire. The tensile strength can reach 45 Mpa, the working pressure can reach 1.6 Mpa at normal temperature. Using glue to bond, no need to process thread, convenient and fast working.
FAQ:
1.What is your MOQ?
No MOQ, any quantity is acceptable in our company.
2.What is your delivery time?
The time of delivery is around15-20 days.
3.What is the shipping port?
We ship the goods via Ningbo and Shanghai port.
4.What is your payment terms?
30% T/T in advance,70% at the sight of copy of B/L.
5.What is the location of your company?
Our company is located in the Hangzhou, Zhejiang ,China.
We are warmly welcome you if you would like to have a visit.
6. Are you a manufacturer or trading company ?
Yes, we are a professional manufacturer in UPVC and CPVC products, and have almost 15 years.
7.Can you accept OEM or ODM?
Yes, OEM is welcomed, and also we cooperated with lots of customers according to your need.
8.Why choose us?
Because of professional, responsible, strict with things, excellent goods, competitive price, short of time answer, fast delivery. Warmly welcomed in Germany, Japan, Spain, Russia, Canada etc market.
