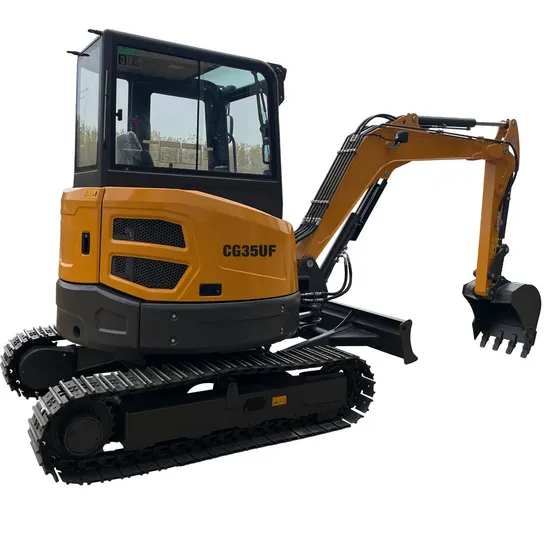

Cougars 3800kgs Mini Crawler Excavator for USA

Product Description

MAIN PARAMETERS
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA/D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cyinder	3
Type	In-line,water cooled,4-stroke,mechanical pump,normally aspirated
Max.torque
Displacement	97.4N.m/1500rpm1.642L
TRACK DRINING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width ofsteel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Budketcapacity	0.12m3
Swing speed	12rpm
Maximum Gradeability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpe
Machineweight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tankcapacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MIA CHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	142.0mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

COUGARS 3800KGS Mini Crawler Excavator Experience the power and efficiency of the COUGARS 3800KGS Mini Crawler Excavator. Designed to tackle the toughest jobs with ease, this excavator is built with quality components and smart engineering for exceptional performance.
Equipped with a reliable Kubota diesel engine, this excavator delivers smooth operation and powerful hydraulics. Its 3.5T size makes it the ideal allrounder, offering high break out force and digging power while remaining portable and easily transportable to different job sites.
The COUGARS range of excavators is known for its performance and value for money. With a massive 10kN excavating force and a 400mm bucket included as standard, this machine is ready to take on any task.
Operating the COUGARS 3800KGS Mini Crawler Excavator is a breeze, thanks to its simple joystick and lever controls. The heavy-duty steel construction, with CNC laser-cut build accuracy, ensures durability and reliability.
With full function capabilities including traverse, swing, boom swing, and dig, this excavator is versatile and compatible with a range of attachments such as augers, rock breakers, and grapples.
Experience peace of mind with the simple key start ignition and a 1-year warranty. COUGARS Machinery is committed to delivering exceptional quality at a realistic price, making their excavators suitable for both commercial trade users and small property owners.
The COUGARS 3800KGS Mini Crawler Excavator is powered by a Kubota water-cooled diesel engine, known for its exceptional performance and fuel efficiency. This makes it an ideal choice for small to medium businesses looking to maximize their return on investment.
With high specs and quality components, the COUGARS 3800KGS Mini Crawler Excavator stands out from the competition. Upgraded heavy-duty hydraulic oil pump ensures a longer operating life, while genuine USA Eaton drive and swing motors deliver smooth and controllable performance.
The hydraulic control valves offer smooth operation, and the joystick controls, along with the full weather cabin, provide a comfortable and enjoyable operating experience.
Constructed to the highest specifications, the COUGARS 3800KGS Mini Crawler Excavator is built with CNC laser-cut steel sections for accuracy and strength. Its proven design guarantees performance and reliability, making it the perfect choice for any job.


Enhance the functionality of your excavator with a range of high-quality attachments and accessories. COUGARS® excavators feature a quick coupling design, allowing you to easily interchange attachments depending on the job at hand. With the option to buy or rent additional attachments, you can always expand the capabilities of your machine.
Each machine comes fitted with a 400mm bucket, providing a solid foundation for your excavating needs. For specific applications, you can choose from a variety of optional attachments as extras.
Buckets for Trenching and Bulk Materials Movement
The Series 35 machines can accommodate a range of buckets in different sizes, ensuring efficient trenching and bulk materials movement.
Ripper Attachment
Loosen hard ground and break through tough tree roots effortlessly with the ripper attachment. Its hardened steel ripper tip, reinforced with heavy steel plates, guarantees durability and reliability for even the toughest tasks. Augers for Digging Holes Equip your excavator with an auger drive to quickly dig holes for various applications, including tree planting, foundation digging, and post installation.
Rock Breaker
Break large rocks into manageable pieces with the rock breaker attachment. This versatile tool can also be used to bust up old concrete driveways and footpaths, making them easier to lift, push, and maneuver. The rock breaker attaches via the quick coupling at the hitch, utilizing the auxiliary hydraulic connections. Actuating Grapple
The actuating grapple attachment functions like a 4-in-1 bucket for your excavator, allowing you to grip, lift, roll, and maneuver objects into position. Ideal for forestry work, it excels at clearing brush, lifting logs, and handling branches. Please note that attaching the grapple requires a bit more time, as it utilizes the excavator's ram for operation, requiring pins to be knocked in and out instead of utilizing the quick hitch connection. Excavator Rake
The excavator rake attachment is perfect for moving green waste, whether it needs to be piled for decomposition or burning. It is also effective for clearing problem vegetation like lantana. When it comes to machinery, compromising on quality is not an option. COUGARS excavators are built to last, using only the highest quality materials. Invest in a machine for life.
Experience the power and versatility of the COUGARS 3800KGS Mini Crawler Excavator for USA. With its compact design, Kubota engine, and a wide range of attachments, this excavator is the perfect choice for your excavation needs.
