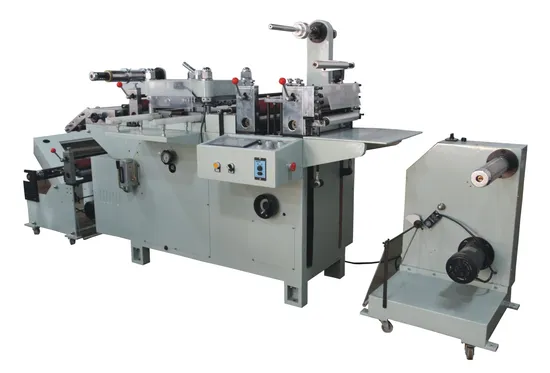

Jmq Touch Screen Protective Film Die Cutting Machine with CE Certification

Product Description

JMQ touch screen protective film die cutting machine with CE certification.
Main characteristics of Flat Bed Die Cutter:
This Flat Bed Roll to Roll die cutting machine die cuts through flat pressing and high precision unit while shifting materials is controlled through servomotor. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Application of Flat Bed Die Cutter:
It is suitable for producing mobile phon protective film, touch screen protective film, computer screen protective film, iPad screen protective film, etc
Parameter of Flat Bed Die Cutting Machine:
Cutting speed: 20-135(time/min)
Max web width: 320mm
Max mould cutting width: 300mm
Max unwind diameter: 500mm
Max mould cutting length: 290mm
Overprint Precision: ± 0.1mm
Total power: 2.2KW
Power voltage: 220V± 10%
Machine weight: About 1500kg
Overall dimensions(L× W× H): 2800× 1100× 1600mm
Optional Device:
Punching System: Can be middle or side punching;
Lamination System: Can be installed in different postion;
Hot-stamping System.
FAQ 1. Q: How about the after-sales service? A: Our machines have one year guarantee, life-long maintenance.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.2. Q: Are you a factory or trading company? A: We are a factory in this field nearly 10 years.3. Q: Where is your factory located? How can I visit there? A:Our factory is located in Ruian City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly or take train to Ruian Station.4. Q:How does your factory do regarding quality control? A:Quality is our invariable topic,it is the basement of company's development.From the beginning of opening company,we especially focus on quality job.Our hotmelt adhesive coating equipment have passed CE and SGS certification.5.Q:What information should I let you know if I want to get quotation?A:-the details of your products,such as substrate,adhesive material,coating width etc.if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.
Should you have some other details not sure? such as videos,specification, components, working process, payment terms etc, please don't hesitate to contact Mr.Ryan as following:
