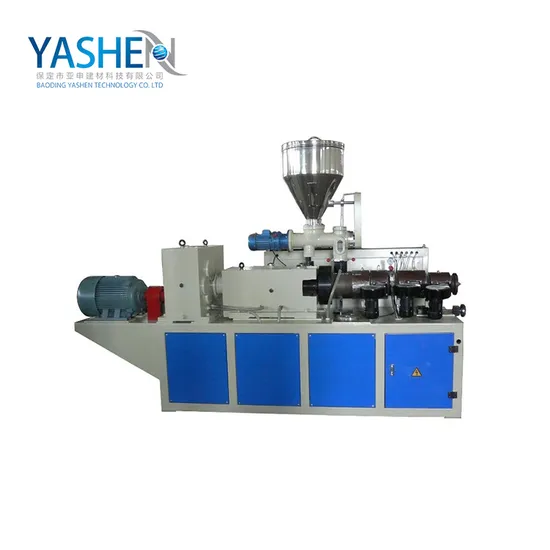

Yashen PVC Waterproof Sheet Production Machine

Product Description

suitable for continuous operation of various PVC magnetic door curtains, transparent soft glass, and anti-static transparent door curtains; The equipment automatically guides and feeds materials, automatically feeds magnetic strip edging, automatically feeds welding, and automatically rewinds finished products 2. cooperate with high-frequency welding, synchronous feeding/pulling, and two-way selection, and the speed is adjustable. 3. electronic counting, suitable for punching on both sides of different material belts at the same time. 4. The product welding is beautiful and smooth, with high efficiency! 5. another name of the product: soft glass, PVC soft board, crystal board, transparent film, table mat, plastic board * Product color: colorless and transparent * Product width: 62, 72, 82, 92, 100, 102, 122, 132, 142, 152, 162 (CM) * Product thickness: 0.15, 0.2, 0.3, 0.4, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.0 (mm) * Applications: families, offices, hotels, hotels, large and small restaurants, supermarkets, hospitals, factories

1)Screw diameter: 120mm
2)Screw aspect ratio: 34:1
3)Screw structure: a new high-efficiency screw
4)Drum screw material: 38C rMoAIA nitriding treatment
5)Nitride layer depth: 0.4-0.7mm
6)Screw hardness: HV> 740
7)Canister hardness: HV> 940
8)Screw rotation speed: 10-50rpm
9)Motor power: 110kw (Shandong famous brand motor)
10)Heating section 8, zone 5kw (cast aluminum + stainless steel air cover)
11)Drum oiling Zone 8*180w
12)ExtrQuantityantity: 180-300kg / h
13)reducer hard tooth reducer Y200 reducer
14)Install belt drive or direct coupling
15)Gear material of 20CrMnTi by carburized quenching
16)Cooling the condenser
17)Automatic vacuum feeding machine E-200KG type

After Sales Service

1. We have over 9 years of OEM experience in fulfilling customer requirements. 2. We supply exwork inspection reports and accept customer or third party inspections. 3. Sample according to customer's requirements is for free. 4. On-line 24-hour services and complete after sales services. Packaging & Shipping

FAQ
How's the quality control? Rich quality-control experience?
Q: How's the quality control? Rich quality-control experience?
A: We have a processing quality control team and workers who have rich experience in our product production. Just tell us your requirements, and we will help to carry out your ideas into perfect work processing.
Q: What are the advantages of the curtain accessories you produce?
A: Our products are laser cut, have no burrs, and have a neat appearance. Most importantly, we can imprint the customer's company name on the outer surface of the accessory, which is free marketing for the customer.
Q: Do you only produce PVC strip curtains?
A: We have been a professional factory since 2013, mainly producing PVC curtains and curtain accessories, we produced work in this area and have been in existence for 10 years.
Q: What are the advantages of the curtain accessories you produce?
