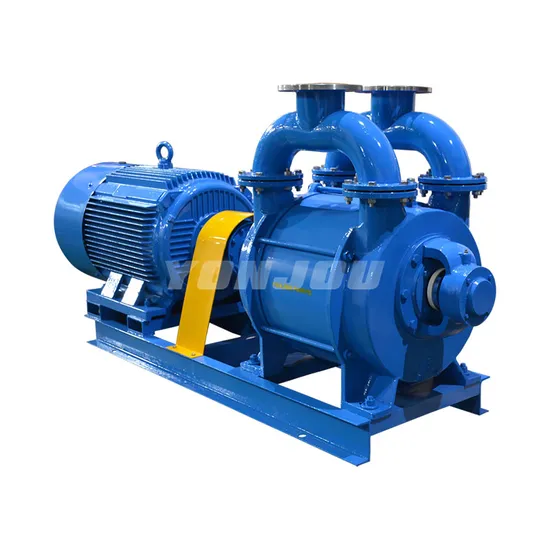

Sk 2sk 2BV China Electric Pumps Liquid Water Ring Vacuum Pump for Milking Machine or Plastic Extrusion Line with Siemens Motor

Product Description

Summarize:
Models 2BV and SK are single stage liquid ring vacuum pumps.
Model 2SK is double stages liquid ring vacuum pump.
The liquid-ring vacuum pump compresses gas by rotating a vaned impeller within a cylindrical casing. Liquid (usually water) is fed into the pump, and by centrifugal acceleration, forms a moving cylindrical ring against the inside of the casing. This liquid ring creates a series of seals in the space between the impeller vanes, which form compression chambers. The eccentricity between the impeller's axis of rotation and the casing geometric axis results in a cyclic variation of the volume enclosed by the vanes and the ring.
Gas, often air, is drawn into the pump through an inlet port in the end of the casing. The gas is trapped in the compression chambers formed by the impeller vanes and the liquid ring. The reduction in volume caused by the impeller rotation compresses the gas, which reports to the discharge port in the end of the casing.
Compressed gas on discharge of pump contains certain amount of working liquid which is usually removed in vapor-liquid separator.
Application:
Single stage or two stage liquid ring vacuum pumps are the ideal for specific, humid, dirty or high capacity applications in heavy industries,a selection of which can be found below.
The 2BV, SK and 2SK series are the workhorses: proven, strong and reliable machines that deliver utility or process vacuum.
2BV SK and 2SK series pumps are therefore suitable for use in the following industry:
· General manufacturing · Metalwork industry
· Food processing · Petroleum industry
· Paint industry· Mining
· Chemical industry· Oil and gas
· Paper and allied products · Plastics
· Brick extrusion· Textile industry
· Automotive industry· Power and utilities
· Cement and allied products

Performance data:

Model	Size	Ultimate vacuum	Maximum air flow	Motor	Speed	Water consumption	Pump diameter
		kpa	M3/min	KW	Rpm	L/min	mm
2BV	2060	3.3	0.45	1.1	2880	2	25
	2061		0.87	1.5	2880	2	25
	2070		1.33	3	2880	2.5	40
	2071		1.83	4	2880	4.2	40
	5110		2.75	4	1450	7	50
	5111		3.83	5.5	1450	8.5	50
	5121		4.68	7.5	1450	10	65
	5131		6.68	11	1450	15	65
	5161		8.3	15	970	20	80
SK	1.5	8.3	1.5	4	1440	15	70
	3		3	5.5	1440	20	70
	6		6	11	1440	30	80
	9		9	15	970	50	80
	12		12	18.5	970	50	80
	15		15	30	730	60	150
	20		20	37	730	60	150
	30		30	55	730	100	150
	42		42	75	730	130	150
2SK	1.5	3.3	1.5	7.5	1440	15	40
	3		3	7.5	1440	20	40
	6		6	15	1440	30	70
	9		9	18.5	970	50	100

Who we are:
We are a professional liquid ring vacuum pump manufacturers in China. We can provide the best electric liquid ring vacuum pump for sales and competitive price. If you are looking for double stage liquid ring vacuum pump supplier, we are a good choice. Contact us to get the price of stainless steel liquid ring vacuum pump, double stage liquid ring vacuum pump, etc..

2BV two stage water ring vacuum pump

SK single stage liquid ring vacuum pump

2SK two stage liquid ring vacuum pump

2BE double stage liquid ring vacuum pump
