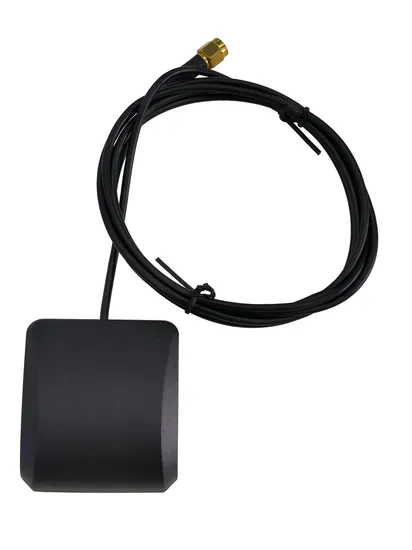

32dB High Gain Passive GPS Antenna Positioning Timing Measuring Antenna
Basic Info.
Sturcture Form
Wire Antenna
VSWR
1.5
Frequency Range
1166-1186/1559-1606
V.S.W.R
1.5:1
Band Width
>10 MHz
Impendence
50 Ohm
Gain(Typical)
29dB
Polarization
R.H.C.P
Lna Gain
1.2 Lna
Noise Figure
1.5dB
DC Voltage
3.0-5.0V
DC Current
15.5mA(at 3.0V)
Operating Wavelength
Microwave
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Dimensionality
Two-Dimensional Antenna
Usage
Positioning and Measurement Antenna
Usage Occasion
Vehicle
Transport Package
Carton
Specification
DIA18 x 70
Trademark
LIJIE
Origin
China
HS Code
8529109090
Production Capacity
120K PCS/Daily
Product Description
Product DescriptionHigh Gain: LNA Gain 28dB waterproof GPS antenna. Voltage: DC 3V-5V. Frequency: 1575.42MHz ±3 MHz Easy Mount: Magnetic base allows attaching it to metal surface 10ft Cable: 10ft extension cable allows you placing the antenna properly Premium Material: Low loss RG174 cable with gold-plated connector, extending its life-span Connector Type: Sma male(pin) connector. Kindly check connector carefully before purchasing Compatible with: Vehicle Telematics; 4G LTE GPS Tracker Locator; Vehicle Real Time Tracking Mobile DVR Video Recorder; Bus Truck RV Van Security Alarm System; Vehicle Amateur Radio Mobile Radio; Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; 4G LTE Industrial Gateway Modular Modem Mobile Router; 4G LTE Cellular RTU DTU Terminal; Trail Camera;
| Model No | LJ-HEA33A |
| Impedance | 50 OHM |
| Frequency | 1166-1186/1559-1606Mhz |
| VSWR | ≤2.0 |
| Passive Gain | 2dBi |
| Polarization | R.H.C.P |
| LNA Gain | 29±2dB |
| Noise figure | ≤1.5dB |
| Operating voltage | 3.3~12V |
| Operating current | ≤15.5mA |
| Weight | 20g |
| Waterproof grade | IP67 |
