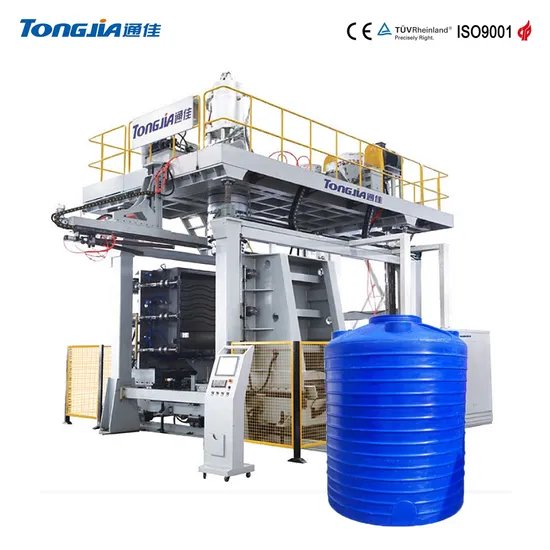

HDPE Plastic Water Storage Tank Drum Barrel Container Blow Molding Moulding Machine

Product Description

Product Description
Tongjia TJ-KB1000L-5000L series hollow blow molding machine is a blow molding machine developed for 200L-5000L civilian barrels,
water storage tanks, and septic tanks. The major advantage of this series of blow molding machines is that they can process polymer materials.
Ethylene, under the premise of lighter weight than similar products, has higher strength than similar products. This series of hollow blow molding machines can be equipped with 2-5 layers of composite storage die according to the requirements of different products.
This series of blow molding machine adopts fixed mold opening and closing, two tie rod structure, and the mold moving system can be moved as
a whole to facilitate mold change. The clamping mechanism adopts hydraulic insert plate clamping, and the clamping cylinder adopts large area
and small stroke to ensure the clamping force and stability, thus making the operation of the whole machine more stable.

Configuration
Clamping system	Diagonal double tie bar center clamping bi-directional synchronous high precision linear guideway clamping device
Extrusion system	AC speed control + Hardened face gear reducer
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-KB1000L	TJ-KB1500L	TJ-KB2000L	TJ-KB3000L	TJ-KB5000L
Material		HDPE	HDPE	HDPE	HDPE	HDPE
Max.product capacity	L	1000	1500	2000	3000	5000
Die head layer	Set	1.2 3.4	1.2 3.4	1.2 3.4	1.2 3.4	1.2 3.4
Machine dimension	M	8.2x6.0x6.0	8.5x7.3x7 2	11.7x8.5x7.5	11.7x8.5x8.0	11.0x8.0x8.0
Machine weight	Ton	38	48	55	68	85
Die-head
Accumulatorcapacity	L	30-60	70	60-100	80-140	80-200
Max.diameter of die	mm	600	600	600	800	820
Die head heating power	KW	54-64	80	80.8-120	129-167	129-189
Die head heating zone quantity	zone	5	5	5-6	5-6	5-6
Clamping Unit
Clamping force	KN	800	1800	1800	2200	3600
Distance between platens	mm	800-2400	1200-2800	1000-3000	1200-3400	1600-4000
Mold platen size	mm	1500x1600	1600x1900	1800x2200	1800x2600	2200x2800
Extruder unit
Screw diameter	mm	120	135	150	150	135X2
Screw L/D ratio	L/D	30	32	30	30	32
HMWHDPE plasticizing amount	Kg/h	380	400	500	500	400x2
Screw heating zone quantity	zone	6	6	6	6	6x2
Screw heating power	KW	36	41	64	64	41x2
Extruder driving power	KW	132	160	200	200	160X2
Power
Total power consumption	KW	275-285	334	397-436	465-504	600-660
Hydraulic drive power	KW	45 + 7.5	45 + 7.5	45 + 7.5	65+7.5	37 + 24 + 7.5
Cooling water consumption	m3/h	30	40	40	45	50
Cooling water pressure	Mpa	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6
Air pressure	Mpa	1	1	1	1	1
Air consumption	m3/min	3	3	4	5	5
