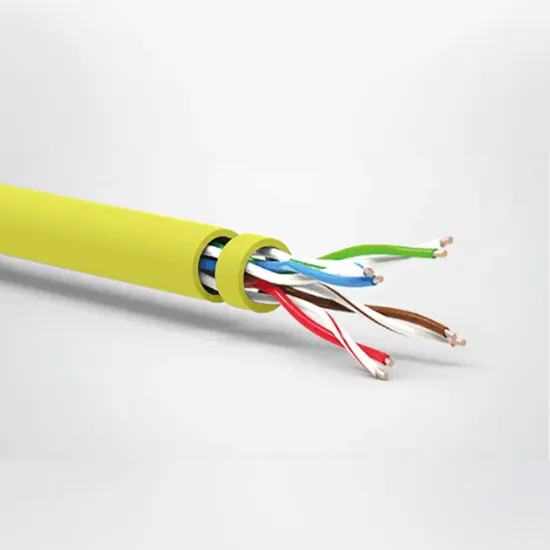

Copper Network LAN Data Cable UTP Cat5e
| US$12.00-38.00 | 50 Boxes (MOQ) |
Basic Info.
Model NO.
YX-UTP-CAT5E-4P
Cover Material
PVC
Type
Cat 5
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
ISO, RoHS, CCC
Model
Yx-UTP-Cat5e-4p
Brand
Eanason
Color
Grey, Blue, Red, Black etc
Transport Package
Carton
Trademark
EANASON or OEM
Origin
China
HS Code
8544491100
Production Capacity
500000km/Year
Product Description
Copper Network LAN Data Cable UTP Cat5eWire Core Material: Bare Copper WireModel: Cat5 LAN CableBrand: EANASON or OEMCertificate: ISO9001,CE,CCCJacket: PVCPacking: Carton, PalletJacket Color: According to the customer's requestInner Conductor: 24 AWG Bc/CCADielectric: 0.90mm PESheath: 5.20mm PVCNom. Thick: 0.55mmColor: Gray, White, BlackTransport Package: Wooden Reel, Plastic Reel, and Paper ReelSpecification: 300m/roll, or 305m/roll
| DESCRIPTION | ||||||||
| Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173. | ||||||||
| TECHNICAL SPECIFICATIONS | ||||||||
| Conductor | Bare copper | 0.50±0.01 mm | | |||||
| Insulation | HDPE | 0.90±0.05 mm | ||||||
| Identification of pairs | ||||||||
| 1 pair | Blue - White / Blue | |||||||
| 2 pair | Orange - White / Orange | |||||||
| 3 pair | Green - White / Green | |||||||
| 4 pair | Brown - White / Brown | |||||||
| Ripcord | Yes | |||||||
| Sheath | PE | |||||||
| Color | Black | |||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||
| Storage temperature | -20ºC-+70ºC | |||||||
| ELECTRICAL CHARACTERISTICS | ||||||||
| nº Pairs.xФ (mm) | Conductor Resistance (ohm/km) | Resistance Unbalance | Cap. between cond. pair (nF / 100m) | Velocity of Propagation (%) | Impendance (ohm) | ФExt. (Appvox) (mm) | ||
| 4x2x0.50 | max.95 | max.4% | 5.6 | 69 | 100±15 | 5.1±0.3 | ||
| Frequency (MHz) | RL ≥dB | ATT ≤dB/100m | NEXT ≥dB | DELAY ≤ns/100m | PS NEXT ≥dB | EL FEXT ≥dB/100m | PS EL FEXT ≥dB/100m | |
| 4 | 23.0 | 4.1 | 56.3 | 552.0 | 53.3 | 52.0 | 49.0 | |
| 8 | 24.5 | 5.8 | 51.8 | 547.0 | 48.8 | 45.9 | 42.9 | |
| 10 | 25.0 | 6.5 | 50.3 | 545.0 | 47.3 | 44.0 | 41.0 | |
| 16 | 25.0 | 8.2 | 47.2 | 543.0 | 44.2 | 39.9 | 36.9 | |
| 20 | 25.0 | 9.3 | 45.8 | 542.0 | 42.8 | 38.0 | 35.0 | |
| 25 | 24.3 | 10.4 | 44.3 | 541.0 | 41.3 | 36.0 | 33.0 | |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.0 | 39.9 | 34.1 | 31.1 | |
| 62.5 | 21.5 | 17.0 | 38.4 | 539.0 | 35.4 | 28.1 | 25.1 | |
| 100 | 20.1 | 22.0 | 35.3 | 538.0 | 32.3 | 24.0 | 21.0 | |
| Appliance | ||||||||
| Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities. | ||||||||
