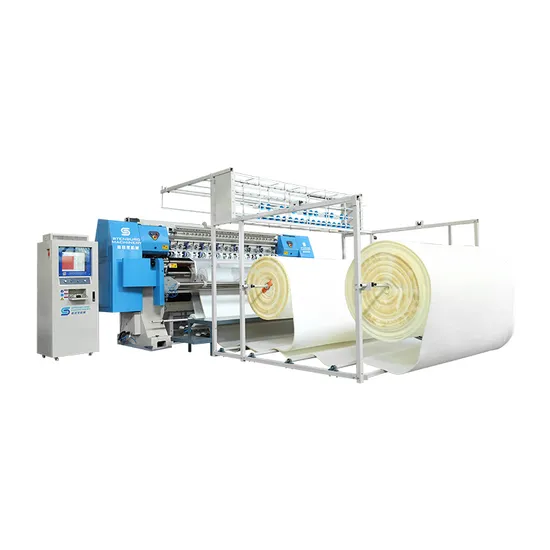

Multi Function Computerized Quilting Machine Mattress Comforter Quilting Machine
| US$39,600.00-47,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HY-W-JH
Certification
ISO, CE
Condition
New
Number of Head
100
Voltage
380V
Type
Computerized Quilting Machine
Width of Quilting
2450mm
Space Between Needles
25.4mm
Total Power Required
7kw
Gross Weight
4500kg
Knitting Machine Cut
Hy-W-Jh
Thickness of Quilting
Less Than 80 mm (for All Patterns)
Transport Package
Plywood Pallet
Specification
21.36cbm
Trademark
Xidengbao
Origin
Guangdong China(Mianland)
HS Code
8452219000
Production Capacity
25 Sets/Month
Product Description
HY-W-JH Computerized Chain Stitch Multi-Needle Quilting MachineHY-W-JH High Speed Computerized Chain Stitch Multi-needle Quilting Machine is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available
Technical Specification:
| Dimension (L*W*H) | 4800*1200*2000mm |
| Width of quilting | 2450mm |
| Space between needle rows | 50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(5" ) |
| Space between needles | 25.4mm |
| X-axis movement distance | 410mm |
| Thickness of quilting | ≤ 80mm (for all patterns) |
| Length of step | 3-8mm |
| Speed between production | 60-230m/Hour |
| Model of needle | 24/180 23/160 22/140 21/130 |
| Speed of main shaft | 200-990RPM |
| Power | 7KW |
| Voltage | 380V /220V 50HZ/60HZ |
| Machine weight | 4500KG |
