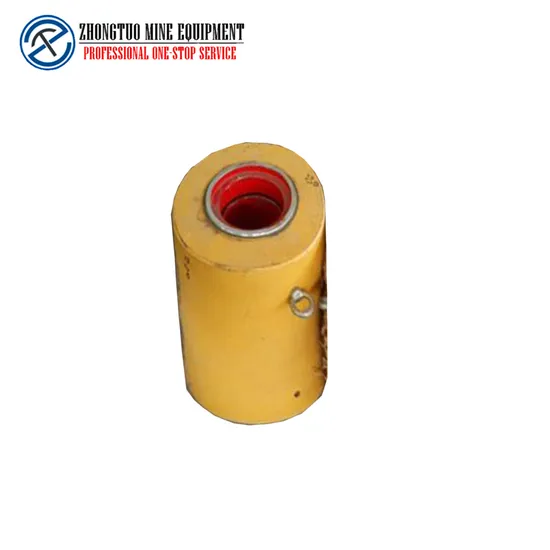

Multi Functional Hydraulic Cylinder Jack

Product Description

Product Description
Description of Hydraulic stressing jack:
Jacks for professional tensioning steel hinge lines of prestressed reinforcement for Hydraulic Stressing Jack, tensioning operation in all kinds of steel strand anchorage. It generally needs to be matched with the tension of the high-pressure oil pump, tension and powered back to the top by the tension of the oil pump
Product Parameters

Parameters of Hydraulic stressing jack:

Model specifications	Nominal tensile force (KN)	Nominal oil pressure (Mpa)	Through-hole diameter (mm)	Install limit plate aperture (mm)	Mounting tool (mm)	Outside diameter size (mm) Diameter * Height
YDC650	650	48	72	99	95	200*385
YDC1000	1000	50	78	111	111	230*385
YDC1500	1500	52	94	150	150	270*390
YDC2000	2000	53	118	177	177	320*400
YDC2500	2500	52	128	210	185	345*400
YDC3000	3000	52	135	190	185	370*400
YDC3500	3500	51	160	232	232	420*400
YDC4000	4000	52	165	252	252	450*410
YDC5000	5000	52	196	260	265	500*410
YDC6500	6500	53	220	295	235	580*420
YDC10000	10000	50	270	440	415	740*570

Installation Instructions

Precautions for operating hydraulic stressing jack:
Should first understand the engineering design of prestressed beam tension, such as root number, each beam of steel strand standard strength, the cross-sectional area of the numerical control stress of delta K, the value of stretching, anchorage retraction value, then according to the pressure of output power calibration of hydraulic. Set the K value of 2. 8, post tensioning hydraulic jack: (see Figure 2: installation method and hydraulic system diagram)
(1) the reserved corridor into the structure of the steel wire, in tension requirements of steel beam exposed length than the working length of jack up 200 - 250mm. steel wire must not lose its head with a sheet grinder after cutting, and is not a "feather", to avoid perforation difficult.
(2) cover the end of the steel wire of the work anchor plate, push it to the anchor plate and fix it at the end of the anchor
(3) installation: Install of anchor clamp clip before the steel ring pay per clip hoop together, and then along the strand will be pushed into the anchor hole, pushed by hand to move.
(4) installing the limiting plate: the spacing plate matches the hole of the anchor plate according to the design of the work anchor plate
(5) post-tensioning jacks: first strand bundle end with wire pin and binding can be lifted, Jack is sheathed on the steel beam, Prestressed Post Tension Jack, and the front end cover is sheathed on the outside of the jack supporting limit plate. Then Jack can be coaxial pair.
Fit the tool anchor at the supporting end of the piston end. FAQ
