Kf94 Machine Manufacturer Automatic Fish Shape Flat Face Mask Making Machine

Product Description

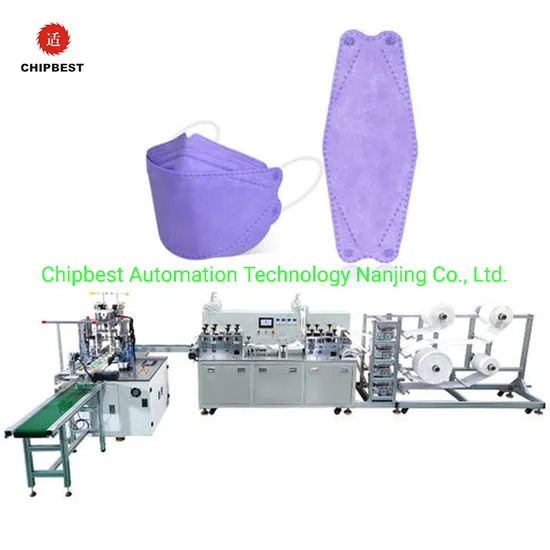

Kf94 Machine Manufacturer Automatic Fish Shape Flat Face Mask Making Machine
KF94 mask is a standard produced in South Korea. According to the data of official website of Korea Ministry of Food and Drug Safety (MFDS), the filtration rate of masks under this standard for particles with a diameter of 0.4 μm is greater than 94%. In other words, KF94 standard mask can filter out at least 94% of particles with a diameter equal to 0.4 μm.
This equipment is a one-driven-one full-automatic fish mask machine, which can produce fish mouth mask products suitable for KF94 in Korea and DS2 in Japan. The mask size can be customized and the appearance can be customized with this equipment. The whole manufacturing process is highly automated from filming to ear belt welding, with simple and convenient operation, small volume and favorable site planning; This machine is mature in technology, stable and reliable, with extremely low failure rate. Its products have been exported to South Korea, Vietnam, Japan and other countries, and are well received. We manufacture high-quality mask machines, KF94 mask machine, KN95 mask machine,.We can provides highly competitive one-stop solutions of prodcuts design,developing,quality control and after sale service.We have an advanced and professional scientific research team, independent research and development and production Mask machine, KF94 mask machine, KN95 mask machine.
Excellent features you can find from our Mask machine, KF94 mask machine, KN95 mask machine:
♥Extreme sharp.
♥Strong quality and durable.
♥High precise size details.
♥Video guide installation and operation
♥Competitive price from factory directly
♥100% safery guarantee for your payment and the shipment.
2. Specifications:

Mask Size	general size in the market, die can be designed according to the drawings
Material Width	240mm recommended, compatible 260mm
Capacity	110~130pcs/min
Power supply	220V/380V, 50/60Hz
Air source	0.5~0.7Mpa
Rated power	7.5kw
Machine size	rack: 2650 x 780 x 1350mm body: 2110 x 1072 x 1600 tail: 1600x 1040 x 1650
Weight	each section <=350kg

3. Product size chart :
The whole machine consists of three sections, namely the material rack (2650mm x 780mm x 1350mm), the body (2110mm x 1072mm x 1600mm) and the tail end (1610mm x 1040mm x 1650mm). Among them, the combination of the material rack and the body is also called the filming machine, and the tail end is also called the ear belt filming machine.
3.1. Top view
3.2. Floor plan
4.Product Features:
The whole machine consists of a material rack part, a nose line fixing part, a shape welding part, a folding and forming part, a shape cutter part, a turning part, a material dividing part, a ear belt welding part and a collection part. The servo motor and ultrasonic welding technology are adopted to complete the production
1. Material rack part: inflatable shaft, magnetic powder brake and controller to ensure moderate material tension without wrinkling;
2. Nose line fixing part: the cylinder is welded with ultrasonic wave to fix the nose line with required length specification on the material;
3. Shape welding part: the mold is matched with ultrasonic wave, and the preliminary grain welding is carried out;
4. Folding and forming part: cloth folding;
5. Shape cutter part: custom cutter, rolling and forming, at this time the mask is initially formed;
6. Turning part: turn over the mask to prepare for the ear belt welding;
7. Material dividing part: reasonable distribution and increased production capacity;
8. Ear belt welding part: use the special rotating disc of the mask machine industry to spot weld the ear belt line on the semi-finished mask with ultrasound, and the mask is formed at this time;
9. Collection part: belt out and product collection;
*After-sale Service
1. Manuals / Videos of machine installation, adjusting,setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 1-year warranty for the machine,2 years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L.
*About Packing
FAQ
1: How to find an automatic machine suitable for my product?
Please Provide Below details, and we will recommend machine for you:
1. What kind of face mask you want to make .
2.The size of the position space reserved for the workshop;
3.The output you want to achieve.
2: Is an engineer available to serve oversea?
Yes, we got customers from all around the world.We can send our engineer to your country to install the machine if needed with the extra cost such as air ticket and hotel,ect.
And we will send you a video of the full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially in automation equipment manufacture and sell various SMT equipments.
We have engaged in the mask machines and SMT automation production for over 13 years.
4. How can we make sure about the machine quality?
Before delivery, we will send you the pictures and videos for you to check the quality,
and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate.
And if you are worry about it, we can use trade assurance service,
guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in automatic machines for over 13 years,
and we provide better after-sales service. We guarantee no risk for our deal.
