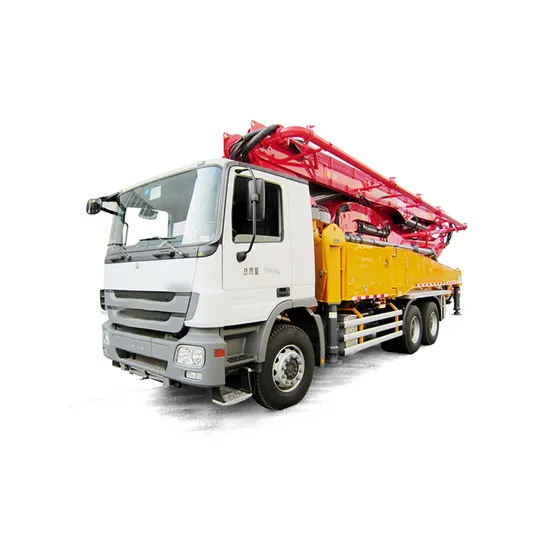

Diesel Truck Concrete Pump Machine 37m Chinese Concrete Pump Truck Price Hb37V
Basic Info.
Model NO.
HB37V
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
50m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000
Condition
New
Color
Orange
Emission
Chinav
Slewing Radius
32.5m
Reach Depth
24.9m
Reach Height
36.5m
Transport Package
Nude Package
Trademark
maxizm
Origin
China
Production Capacity
1000units/ Year
Product Description
37m Euro V 4*2 Truck- Mounted Cement Pump Truck 37m Concrete Pump HB37V HB37K in Stock Product DescriptionThree bridge chassis for the CYZ51Q chassis, the chassis for the national phase emission, high power, high torque, high efficiency and energy saving and off-road ability.
5 section Z-boom for optimal design of frame structure and hinge mechanism, with more space to a job, manipulation is more flexible, long life characteristics.
Product Parameters
| Item | Unit | Parameter |
| Max. speed | km | 90 |
| Min. turning diameter | m | 18.4 |
| Brake distance | m | 7 |
| Approach angle | ° | 31 |
| Departure angle | ° | 12 |
| Chassis model | CXZ51Q | |
| Total weight | kg | 28150 |
| 1st axle load | kg | 6780 |
| 2nd, 3rd axle load | kg | 2120 |
| Engine model | 6WF1 | |
| Max. Engine power | kW | 287 |
| Max. Engine torque | N.m | 1862 |
| Max. grade-ability | % | 38 |
| Fuel consumption limit | L/100km | 34 |
| Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
| Theoretical output | m3/h | 138/90 |
| Max. delivery pressure | MPa | 8.7/13 |
| Reach height | m | 37.4 |
| Reach depth | m | 23.7 |
| Front outrigger transverse span | mm | 7280 |
| Rear outrigger transverse span | mm | 6600 |
| Outrigger longitudinal span | mm | 6860 |
| Delivery pipe diameter | mm | 125 |
| Remote control distance | m | 100 |
| Placing boom slewing range | ° | 370 |
