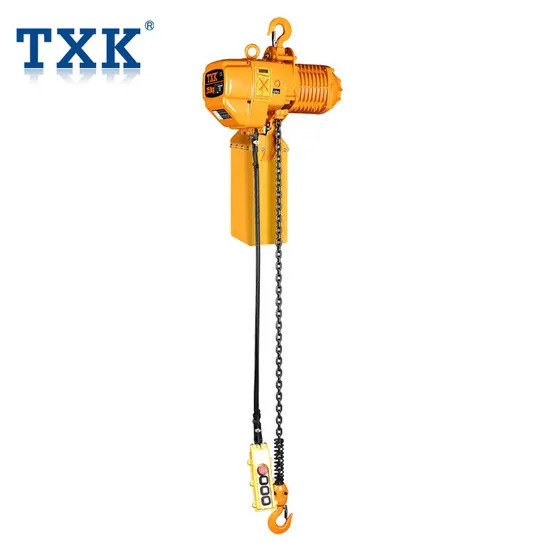

Txk 0.25 Ton 1 Chain Single Speed Electric Chain Hoist with Hook
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SSDHL0.25-01S
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
>20m
Chain Falls
1
Certification
CE, ISO9001:2000, TUV,Gsg
Condition
New
Color
Yellow
Transport Package
Plywood Case or According to Your Requirements
Specification
45KG
Trademark
TXK
Origin
China
Production Capacity
5000sets/Month
Product Description
Wholesale Low Price High Quality Professional 0.25 Ton to 50 Ton Electric Chain Hoist| Single Speed | Technical Parameters | ||||||||||
| Model | 0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(T) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3 |
| Rotation Speed(R/Min) | 1440 | ||||||||||
| Insulation Grade | F | ||||||||||
| Power Supply | 3P 220V-690V | ||||||||||
| Control Voltage | 24V/36V/48V | ||||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 45 | 47 | 61 | 108 | 110 | 73 | 103 | 115 | 127 | 89 | 138 |
Packaging & Shipping Packaging Details:Plywood Cases (Fumigation-free packing)
Shipping Details:7 Days Rapid Delivery
Product Description
TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in harsh environment .
3. Hook: hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. Three phase & Single phase electric chain hoist, both optional
