En14604 CE Approval Tuya Smart Independent WiFi Smoke Alarm Smoke Detector Smart Home System
Basic Info.
Model NO.
TSS380C-HW
Anti-Theft Alarm System Type
Smoke Alarms
Anti-Theft Alarm System Distance
Common Detectors
Types of Smoke Detectors
Photoelectric Smoke Style
Infrared Sensor Installation
Ceiling
Certificate
CE, Ukca, RoHS, Reach, ISO9001, BSCI
Model Type
Photoelectric Smoke Alarm Device
Authentication
Certification Test for En14604:2005/AC:2008
Power Source
2*1.5V Type AA
Battery Energy Consumption
Low-Power Feature, Replaceable AA Battery
Battery Life
Two Years Battery Service Life
Transport Package
Carton
Specification
White
Trademark
JBE
Origin
Zhejiang, China
Production Capacity
100000 Piece/Month
Product Description

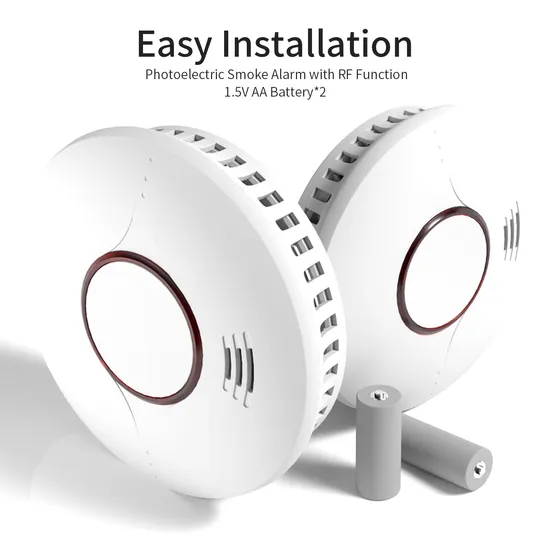

Replaceable AA battery photoelectric smoke alarm with WiFi function
Technical Specifications:
| Power Source | 2*1.5V Type AA | Low Voltage Threshold | ≤ 2.6V |
| Operation Current | ≤ 8uA | Hush time | 8 minutes |
| Alarm Sensitivity | 0.10 -0.16dB/m | Product service life | >10 years |
| Comply with standard | EN14604:2005/AC:2008 | Humidity Range | <93% relative humidity (RH) |
| Alarm Current | ≤ 60mA | Temperature Range | 0ºC to 40ºC |
| Alarm Volume | >85dB(A) @ 3 meters. | Size | 120mm in diameter x 36.6mm depth |
| Sound Pattern | (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s, with the RED LED flash, repeat this alarm pattern) | ||
When the device is successfully added to your APP list, the WIFI function can transmit the alarm status to the "Smart Life" APP in real time every time the product status changes
The APP displays the following alarm information
| Smoke Detection State | Normal | Note |
| Fire From Smoke | ||
| Smoke Fault | ||
| Fire Hush 8 Minutes | ||
| Power State | Normal | Battery normal |
| Battery Voltage Low | Battery voltage lower than 2.6V | |
| Smoke concentration percentage | 0%/25%/50%/75%/100%/125%/150%/175% | When the smoke detection value shows up to100%, it will enter the alarm state; |
| /200%/225%/250%/255% |
