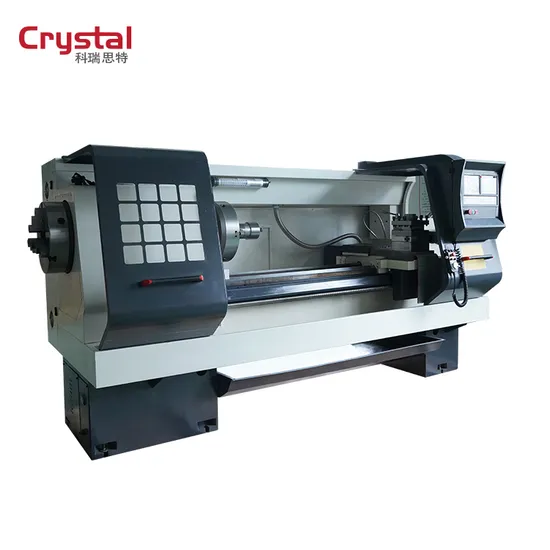

CNC Oil Pipe Threading Processing Lathe Machine with Big Spindle Bore Qk1313
| US$19,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QK1313
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
Qk1313
Transport Package
Standard Wooden Case
Specification
2410x1560x1730
Trademark
Crystal
Origin
China
HS Code
8458110090
Production Capacity
45sets/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly,please consult customer service for the best price.
| Characters 1. We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle. 2. The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like. 3. The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. 4. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling. 5. There are two types of speed change: Manual and step less. 6. Set up self lubrication system, and easy to maintain. |
| | Lathe specifications | Specifications |
| Technical specifications | Maximum diameter of lathe bed (mm) | φ610 |
| Maximum tactical diameter of sliding plate (mm) | φ350 | |
| Maximum work-piece length (mm) | 1000 | |
| Main drive | Form | Main motor servo stepless |
| Rank of spindle speed | No grade | |
| Range of spindle speed(r/min) | 50-850 rpm | |
| Terminal structure | C11 | |
| Hole diameter of spindle (mm) | Φ140 | |
| The maximum diameter of the tube | 135mm | |
| Power of main motor (KW) | 11KW(servo) | |
| Feeding system | Maximum route of knife rest (mm) | X:310 Z:1150 |
| Speed of quick-travel (mm/min) | X:4000 Z:5000 | |
| Resetting accuracy | X:0.012 Z:0.016 | |
| Precision of work piece | IT6-IT7 | |
| Surface roughness | Ra1.6 | |
| Tailstock | Sleeve diameter of tailstock (mm) | Φ75 |
| Sleeve trip of tailstock (mm) | 150 | |
| Cone hole taper tailstock's sleeve | MT5 | |
| Knife rest | Standard configuration | Four-station vertical electrical knife rest |
| Alternative configuration | Horizontal Six-station electrical knife rest | |
| Resetting accuracy (mm) | 0.01 | |
| Length of section of knife handle (mm) | 30×30 | |
| Machine size weight | Length*width*height | 2650×1450×1710 |
| Net weight (Kg) | 3000Kg |
