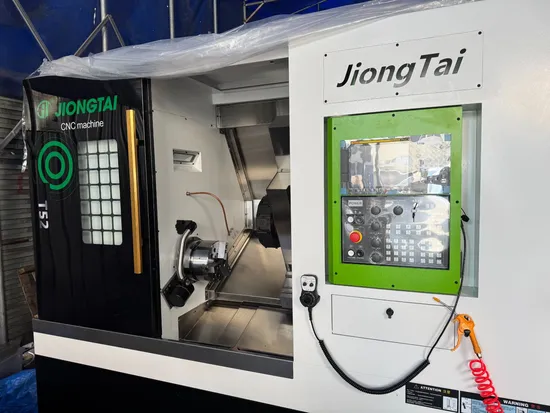

High-Precision CNC Slant Bed Turning and Milling Compound Machining Center with Y-Axis, Power Tool Turret, and Power Head T50 Lathe
| US$23,520.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JT-T50
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Chuck
Hydraulic Chuck
Transport Package
Seaworthy Packing
Specification
2290*1510*2000mm
Trademark
JT
Origin
China
HS Code
845710
Production Capacity
1500sets/Year
Product Description
Product Parameters
| Model | Specification | |||||
| JT-T50 | Maximum Swing Diameter on Bed | mm | 500 | |||
| Maximum Swing Diameter on Saddle | mm | 200 | ||||
| Maximum Processing Length | mm | 450 | ||||
| Spindle Head Type | GB59001 | A2-6 | ||||
| Spindle Bore Diameter | mm | 52 | ||||
| Spindle Speed | rpm | 50-3500 | ||||
| Chuck | inch | 8-inch Hydraulic Hollow Chuck | ||||
| Tailstock Type | Hydraulic Tailstock | |||||
| Tailstock Sleeve Travel | mm | 100 | ||||
| Tailstock Sleeve Taper | MT5# | |||||
| Tailstock Guide Rail | Hard Rail | |||||
| X Axis Travel | mm | 300 | ||||
| Z Axis Travel | mm | 550 | ||||
| Y Axis Travel | mm | 110 | ||||
| X/Z Rapid Feed Rate | m/min | 25/25 | ||||
| Tool Holder Type | BMT55-12 | |||||
| Tool Size | mm | 25*25 | ||||
| Main Drive Triangular Belt Type and Specifications | mm | Timing Belt | ||||
| Overall Dimensions (Length * Width * Height) | mm | 2290*1510*2000 | ||||
| Weight | kg | Approx. 3400 | ||||
| SYNTEC System Matching Motor | CNC system | SYNTEC 22TB | SYNTEC | Taiwan | ||
| Z-axis Motor | Nm | 15 | ||||
| Y-axis Motor | Nm | 15Z | ||||
| X-axis Motor | Nm | 15Z | ||||
| A-axis Motor | Nm | 15 | ||||
| Spindle Motor | Kw | 15 | ||||
| FANUC System Matching Motor | CNC system | Fanuc 0I TF PLUS | FANUC | Japan | ||
| Z-axis Motor | biSc12/3000+ | |||||
| Y-axis Motor | biSc12B/2000 | |||||
| X-axis Motor | biSc12B/3000 | |||||
| A-axis Motor | AIS12/4000 | |||||
| Spindle Motor | BII12/10000 Flange | |||||
| Standard configuration | Spindle Bearing | 1 | P4 | Guwei | China | |
| 1 | Heavy cutting type | 200 Spindle Unit | China | |||
| Linear Guide | 1 | Z 35 roller × 35 roller | FZS/PMI | Germany/Taiwan | ||
| X Lead Screw Bearing | 1 | 30TAC62 TBT P4 | Domestic/PMI | China/Taiwan | ||
| Z Lead Screw Bearing | 1 | 30TAC62 DF P4 | Domestic/PMI | China/Taiwan | ||
| Ball Screw | 1 | Z 4010×3210 | Wanrun//PMI | China/Taiwan | ||
| Lubrication Unit | 1 | China | ||||
| Hydraulic Chuck | 1 | 8-inch Hydraulic Hollow Chuck | China | |||
| Hydraulic Unit | 1 | China | ||||
| Powered Tool Post | 1 | BMT55-12 | LIANQI | Taiwan | ||
| Electrical Brand | Schneide | France | ||||
| Coolant Pump | 1 | China | ||||
