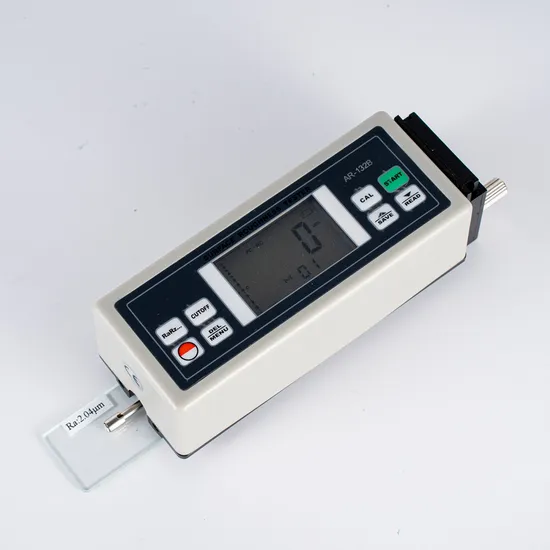

Digital Testing Equipment and Portable Surface Roughness Meter Steel Pipe
| US$872.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AR-132A
Max Diameter of Workpiece
>6mm
Mass Scope of Workpiece
No
Type
Roughness Tester
Maxcapacity
16mn(1.6GF)
Accuracy Grade
Not More Than ±10%
Load Way
Electronic Load
Display
Digital
Control
Manual Control
Weight
420 G
Power Source
Built-in Rechargeable Li-ion Battery
Parameter
Ra, Rz
Ra Measuring Range
0.05~10.00 Um / 1.000~400.0 Uinch
Rz Measuring Range
0.020~100.0 Um / 0.780~4000 Uinch
Accuracy
Not More Than ±10%
Probe Radius
10μm
Transport Package
Portable Aluminum Case
Specification
140x52x48 mm
Trademark
AM
Origin
China
HS Code
9031809090
Production Capacity
999PCS/Month
Packaging & Delivery
Package Size
30.00cm * 22.00cm * 9.00cm
Package Gross Weight
2.000kg
Product Description
Guangzhou Amittari instruments Co., LTD. specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tension meter, sound level meter, anemometer, force gauge etc..Digital testing equipment and Portable Surface Roughness Meter Steel Pipe AR-132A
| The Surface Roughness Tester is widely used in production site to measure surface roughness of various machinery-processed parts, calculate correspondingparameters according to selected measuring conditions and clearly display all measurement parameters. Product Feature * Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD. * Multiple parameter measurement: Ra, Rz. * Highly sophisticated inductance sensor. * Built-in lithium ion rechargeable battery and control circuit with high capacity. * Small in size, light in weight and easy to use. *Manual or automatic shut down. * Metric /Imperial Conversion. * Use USB data output with connection PC. * Provide Bluetooth data output choice. Product Parameters
Product Accessories
Buying Guide When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker. The following three items are basic optional accessories choices Standard Accessories+USB data output Standard Accessories+Bluetooth data output Bluetooth Accessories Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output. Package Our service FAQ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
